SKU: BK2518RS-EU

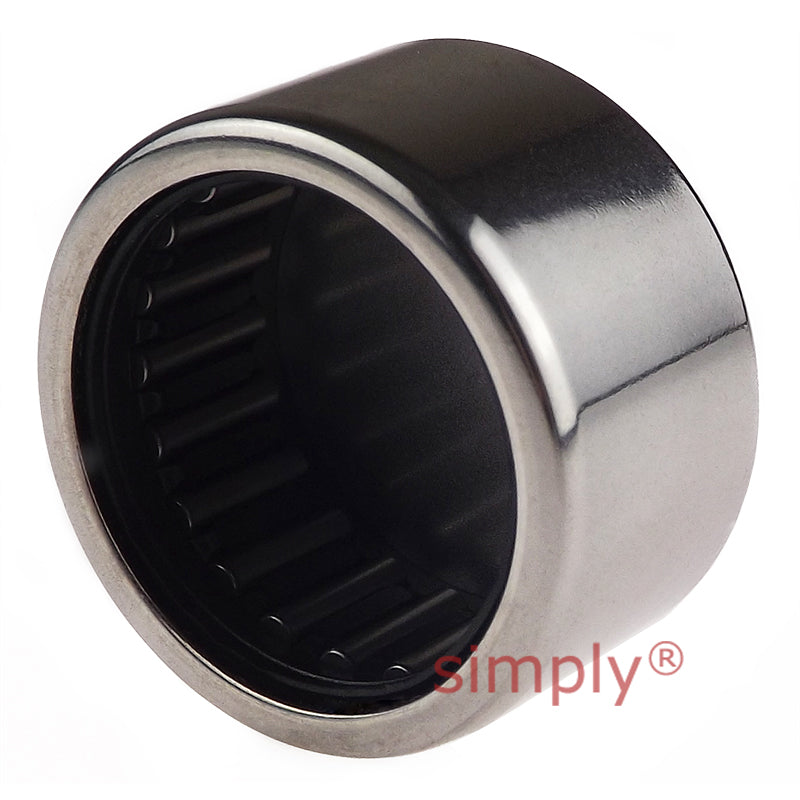

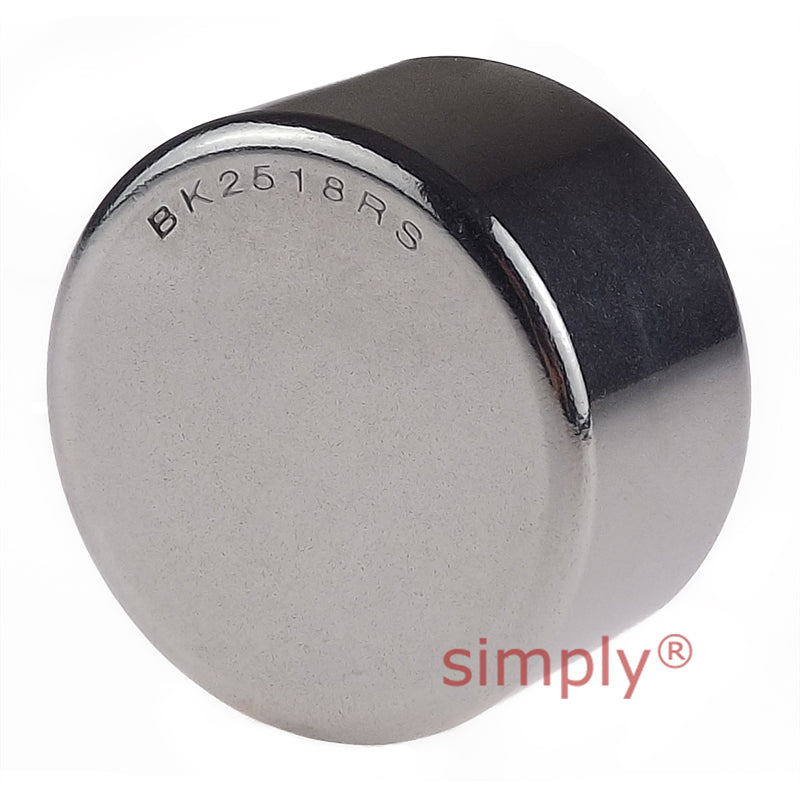

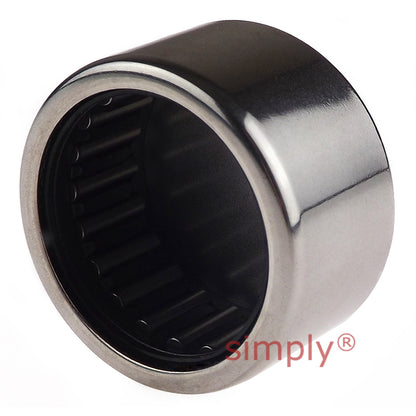

BK2518RS Budget Drawn Cup Needle Roller Bearing with One Closed End 25x32x18mm
- Regular price
- CHF 10.00 ex VAT
- Sale price
- CHF 10.00
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
10
CHF 8.90
19
CHF 8.40
29
CHF 8.30
39
CHF 8.20
49
CHF 8.10
74
CHF 8.00
99
CHF 7.50
199
CHF 7.40
249
CHF 7.30
499
CHF 7.20
999
CHF 7.00
Description
|

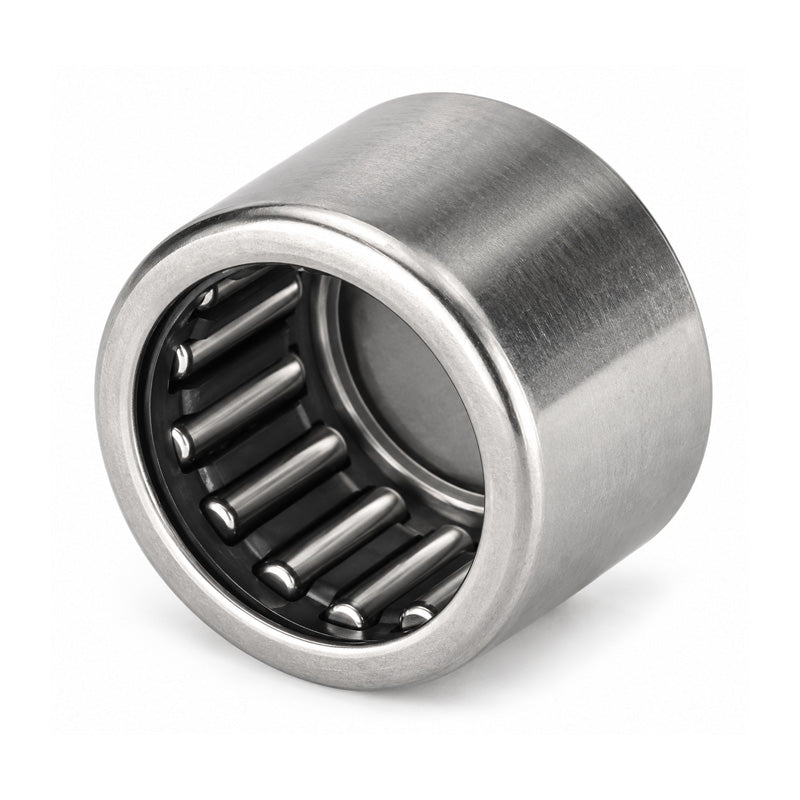

Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 25mm |
| D | = | 32mm |
| C | = | 18mm |
| Dynamic load C | = | 15100 N |
| Static load Co | = | 24000 N |
| Fatigue load limit Pu | = | 2850 N |
| Speed in grease | = | 7000 rpm |
| C1 | = | 15.3mm |
| r1r2 min | = | 0.8mm |
| Da max | = | 27mm |
| ra max | = | 0.8mm |
| Inner ring | = | LR20x25x16.5 |
| Weight | = | 34 g |
