SKU: BB-6002-C160-20-ES

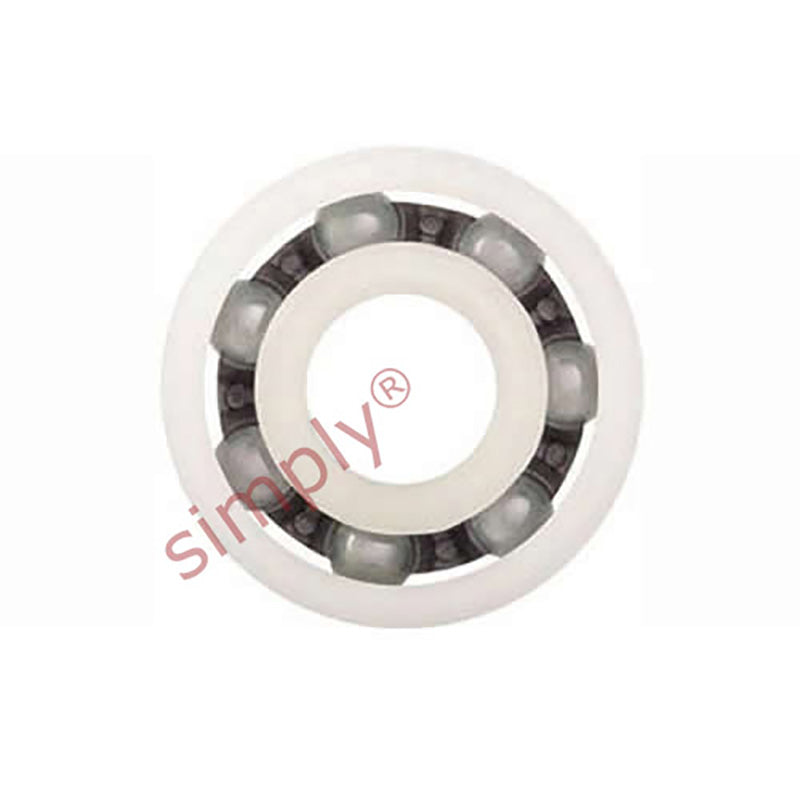

xiros xirodur BB6002C16020ES Open Type Ball Bearing with PP Cage and Stainless Steel Balls 15x32x9mm - Allow 2-3 Days
xiros xirodur BB6002C16020ES Open Type Ball Bearing with PP Cage and Stainless Steel Balls 15x32x9mm - Allow 2-3 Days
Out of stock
Description
Description
|
IGUS xiros® xirodur® C160 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of PP cages and stainless steel balls. The ball bearing material xirodur® C160 offers extreme media resistance. These bearings are suitable for temperatures up to +80 deg C. Benefits: Lubrication- and maintenance-free, resistant to corrosion and chemicals, lightweight, non-magnetic, washable, low friction, life time predictable. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 9mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1 | 15mm |
|---|---|
| d2 | 32mm |
| Width | 9mm |
| Max static load axial | 100 N |
| Static load rating | 116 N |
| Dynamic load rating | 155 N |
| Max speed | 1600 rpm |
| Race | C160 |
| Cage | PP |
| Ball Material | Stainless Steel |
