SKU: BB-6002-A500-70-PAI

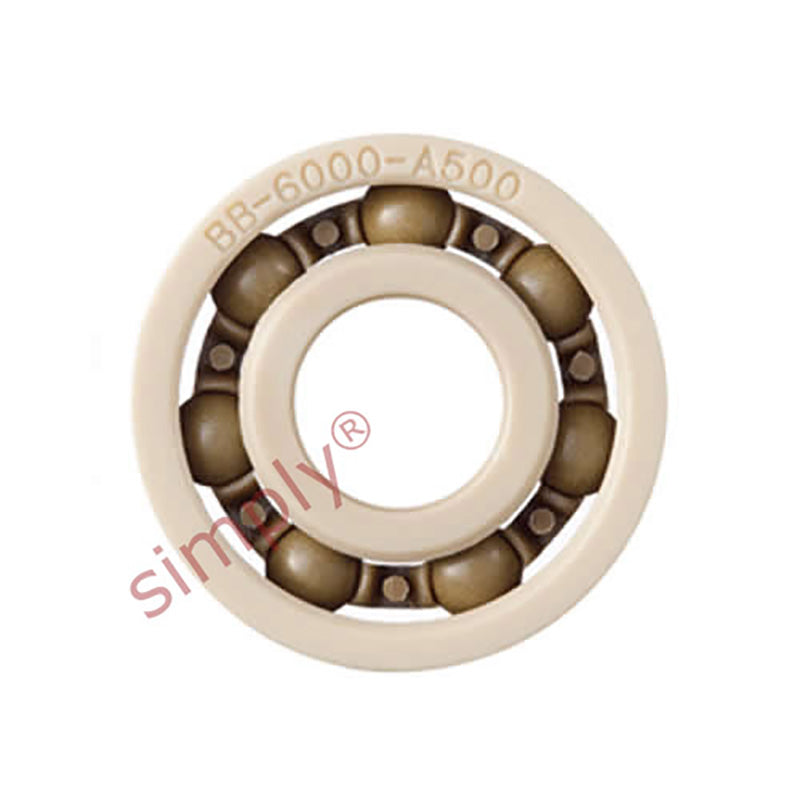

xiros xirodur BB6002A50070PAI Open Type Polymer Ball Bearing with PEEK Cage and PAI Balls 15x32x9mm - Allow 2-3 Days
xiros xirodur BB6002A50070PAI Open Type Polymer Ball Bearing with PEEK Cage and PAI Balls 15x32x9mm - Allow 2-3 Days
Out of stock
Description
Description
|
IGUS xiros® xirodur® A500 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of PEEK cages and polymer balls. These bearings are suitable for high temperatures up to +150 deg C. Unlike other bearings in the xirodur® A500 range, these bearings are available with plastic balls. At low loads, the wear resistance can thus be improved by up to a factor of 3. Benefits: Lubrication- and maintenance-free, resistant to corrosion and chemicals, lightweight, non-magnetic, washable, high-temperature range, life time predictable. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 9mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Temperature Range:
- High Temp
Technical
Technical
| d1 | 15mm |
|---|---|
| d2 | 32mm |
| b1 | 9mm |
| Max static axial load | 120 N |
| Static load capacity | 32 N |
| Dynamic load capacity | 41 N |
| Max speed | 1800 rpm |
| Race | A500 |
| Cage | PEEK |
| Ball material | PAI |
