SKU: BB-6001-F180-10-ES

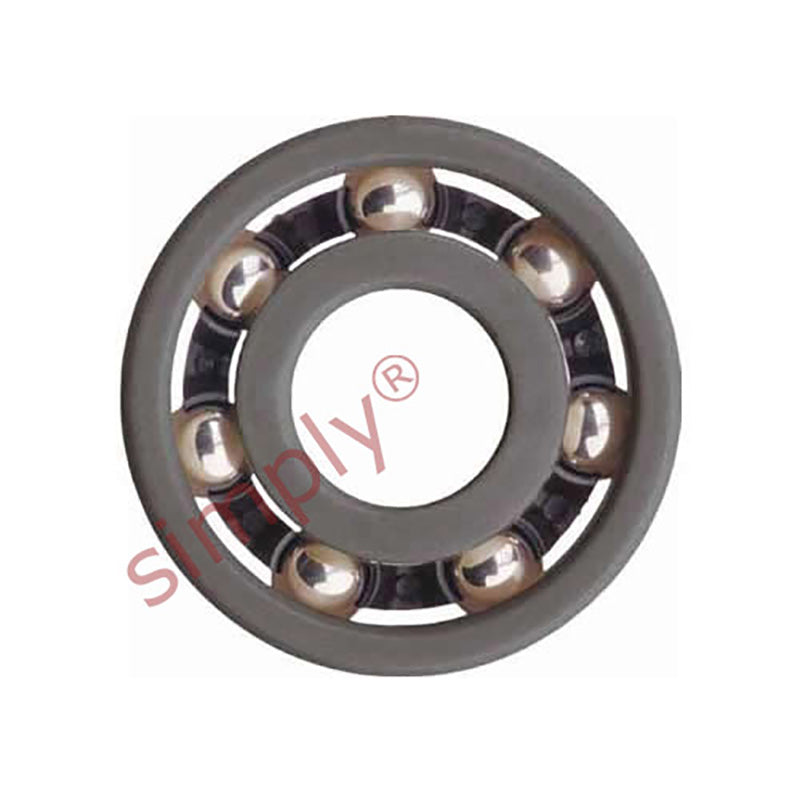

xiros xirodur BB6001F18010ES Open Type Electrically Conductive Polymer Ball Bearing with PA Cage and Stainless Steel Balls 12x28x8mm - Allow 2-3 Days
xiros xirodur BB6001F18010ES Open Type Electrically Conductive Polymer Ball Bearing with PA Cage and Stainless Steel Balls 12x28x8mm - Allow 2-3 Days
Out of stock
Description
Description
|
IGUS xiros® xirodur® F180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and stainless steel balls. They are for use with temperatures up to +80 deg C. Due to the electrical conductivity, xirodur® F180 polymer ball bearings prevent static build up on your componenets in the application. Benefits: Lubrication- and maintenance-free, electrically conductive (ESD protection), high lifetime, cost-effective, low weight |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 8mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1 | 12mm |
|---|---|
| d2 | 28mm |
| b1 | 8mm |
| Max static load capacity | 136 N |
| Static load capacity | 170 N |
| Dynamic load capacity | 315 N |
| Max speed | 2000 rpm |
| Race | D180 |
| Cage | PA |
| Ball material | Stainless Steel |
