SKU: AELPP207-104-NTN

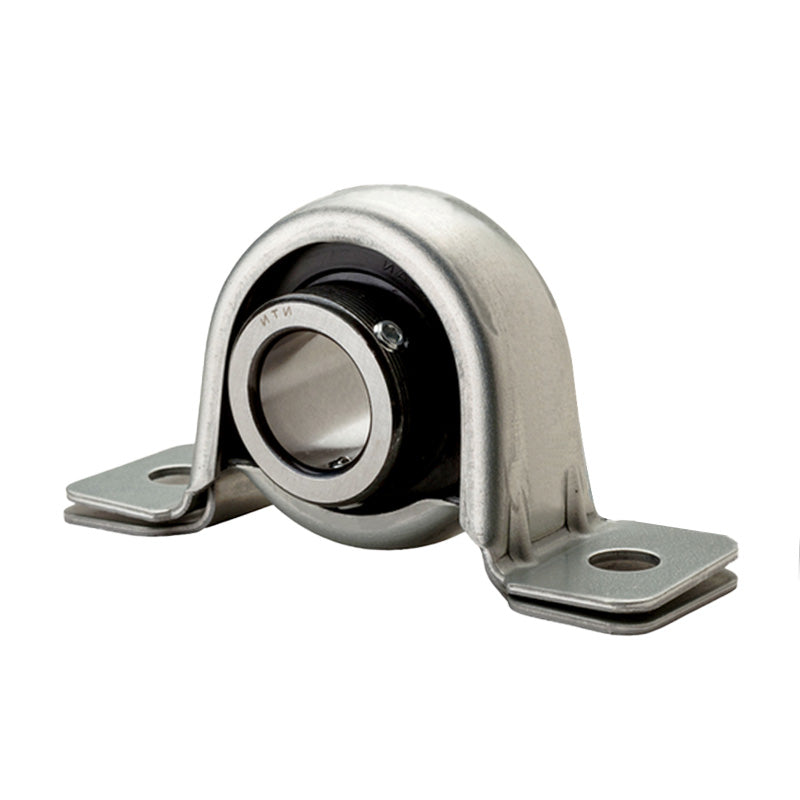

NTN AELPP207-104 Imperial Pressed Steel Two Bolt Plummer Block Housing with 1-1/4 inch Eccentric Collar Insert - Allow 2-3 Days
NTN AELPP207-104 Imperial Pressed Steel Two Bolt Plummer Block Housing with 1-1/4 inch Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Description
Description
|
AELPP200 Series 2 Bolt Pressed Steel Pillow Block Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has a collar and grub screws for securing the insert to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost-effective bearing/housing assembly, replaceable insert, collar & grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- AELPP
- Bolt Hole Centres:
- 4-3/16 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-1/4 inch |
| H | 1-9/16 inch |
| L | 5-3/32 inch |
| J | 4-3/16 inch |
| A | 1-21/32 inch |
| N | 29/64 inch |
| H<sub>1</sub> | 0.181 inch |
| H<sub>2</sub> | 3-1/16 inch |
| B | 1.531 inch |
| S | 0.374 inch |
| Fixing bolt | 3/8 inch |
| --- | Load rating |
| Max load recommended radial | 990 lbf |
| Max load recommended axial | 360 lbf |
| --- | Unit information |
| Mass | 1.8 lbs |
