SKU: 6314-ZZ-CDX

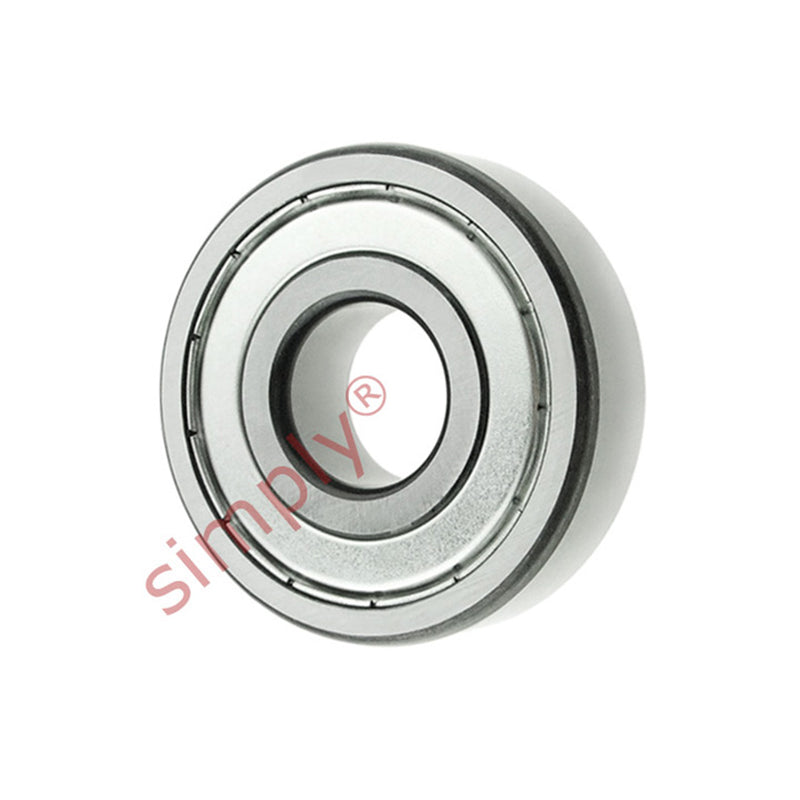

Codex 6314ZZ Metal Shielded Deep Groove Ball Bearing 70x150x35mm
Codex 6314ZZ Metal Shielded Deep Groove Ball Bearing 70x150x35mm
Regular price
CHF 56.00
ex VAT
Regular price
Sale price
CHF 56.00
ex VAT
Equivalent to: 6314ZZ 63142Z 63142ZR 6314ZZE 6314FF 6314DD 6314DDC 6314KDDC EL70ZZ EL702Z
In stock
Price Break
4+
CHF 44.16
10+
CHF 41.67
20+
CHF 41.18
30+
CHF 40.68
50+
CHF 40.19
75+
CHF 39.69
100+
CHF 37.21
200+
CHF 36.71
250+
CHF 36.22
500+
CHF 35.72
1000+
CHF 34.73
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6314ZZ 63142Z 63142ZR 6314ZZE 6314FF 6314DD 6314DDC 6314KDDC EL70ZZ EL702Z
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| B | 35mm |
| Dynamic load C | 111 kN |
| Static load Co | 68 kN |
| Fatigue load limit Pu | 2.75 |
| Reference speed | 9500 rpm |
| Limiting speed | 5000 rpm |
| Weight | 2.5 kg |
| d1 | 95mm |
| d2 | 130mm |
| D2 | -mm |
| r1r2 min | 2.1mm |
| da min | 82mm |
| da max | -mm |
| Da max | 138mm |
| ra max | 2 |
| Calc factor kr | 0.03 |
| Calc factor Cor f0 | 13 |
