SKU: 6310-NR-C3-FAG

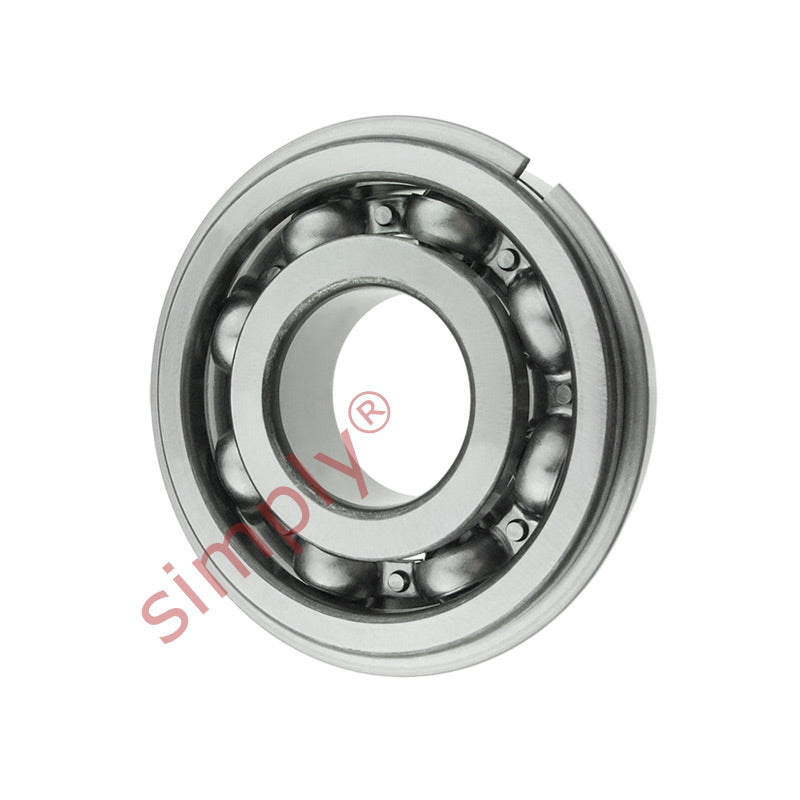

FAG 6310NRC3 Deep Groove Ball Bearing with Snap Ring 50x110x27mm
FAG 6310NRC3 Deep Groove Ball Bearing with Snap Ring 50x110x27mm
Out of stock
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 27mm |
| Dyamic load C | 65 kN |
| Static load Co | 38 kN |
| Fatigue load limit Pu | 1.6 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 8500 rpm |
| Mass | 1.05 kg |
| d1 | 68.8mm |
| d2 | 91.1mm |
| D2 | 95.2mm |
| r1r2 min | 2mm |
| da min | 61 |
