SKU: 628/5-2Z/C3-SKF

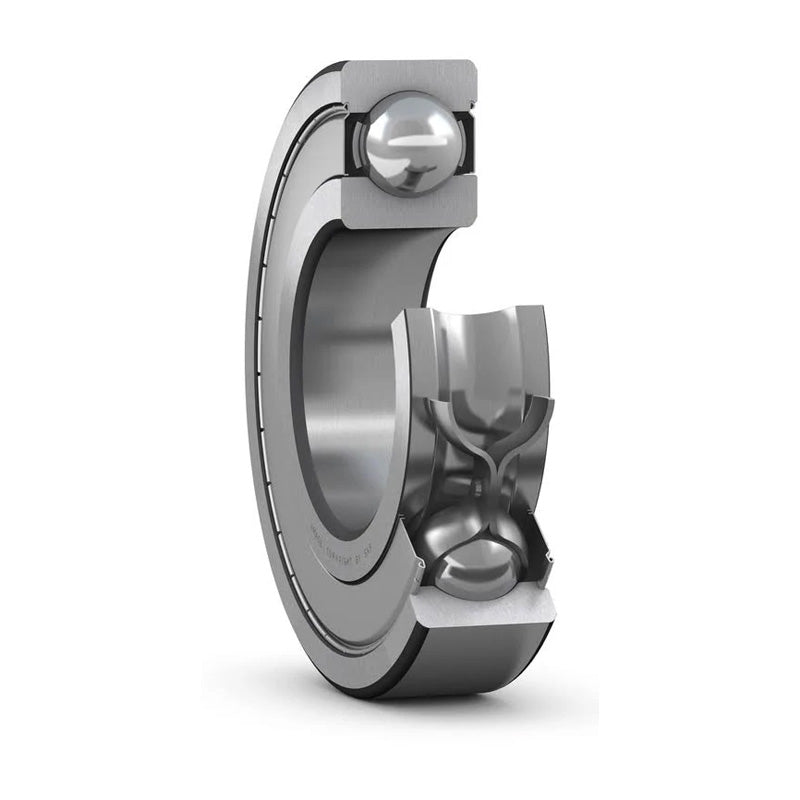

SKF 628/52ZC3 Metal Shielded Deep Groove Ball Bearing 5x11x4mm
SKF 628/52ZC3 Metal Shielded Deep Groove Ball Bearing 5x11x4mm
Equivalent to: 628/5ZZC3 62852Z 628/52ZRC3
Out of stock
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 11mm
- Width:
- 4mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 5mm |
|---|---|
| D | 11mm |
| B | 4mm |
| Dynamic load C | 0.64 kN |
| Static load Co | 0.26 kN |
| Fatigue load limit Pu | 0.011 kN |
| Reference speed | 120000 rpm |
| Limiting speed | 60000 rpm |
| Weight | 0.0014 kg |
| d1 | 6.8mm |
| d2 | 0mm |
| D2 | 9.7mm |
| r1r2 min | 0.15mm |
| da min | 5.8mm |
| da max | 0mm |
| Da max | 10.2mm |
| ra max | 0.1mm |
| Calculation factor kr | 0.015 |
| Calculation factor f0 | 11 |
