SKU: 6210-2Z-EU

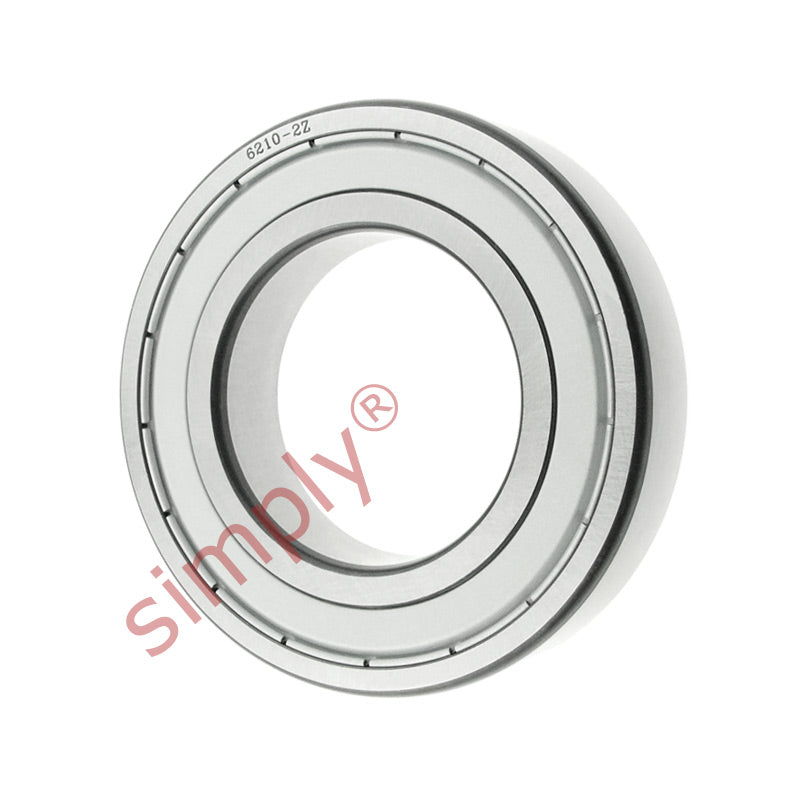

6210ZZ Budget Metal Shielded Deep Groove Ball Bearing 50x90x20mm
Equivalent to: 6210ZZE 6210ZZ 6210.2Z 6210KDD 6210DD 6210FF 62102ZR 6210ZZE 6210ZZ 62102ZR 62102RS2
In stock
Price Break
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6210ZZE 6210ZZ 6210.2Z 6210KDD 6210DD 6210FF 62102ZR 6210ZZE 6210ZZ 62102ZR 62102RS2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 20mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| B | 20mm |
| r min | 1.1mm |
| Dynamic load Cr | 35.1 kN |
| Static load Cor | 23.3 kN |
| Speed in grease | 7100 rpm |
| Speed in oil | 8500 rpm |
