SKU: 6203-2ZT-N9-C3-VT-223-B-FAG

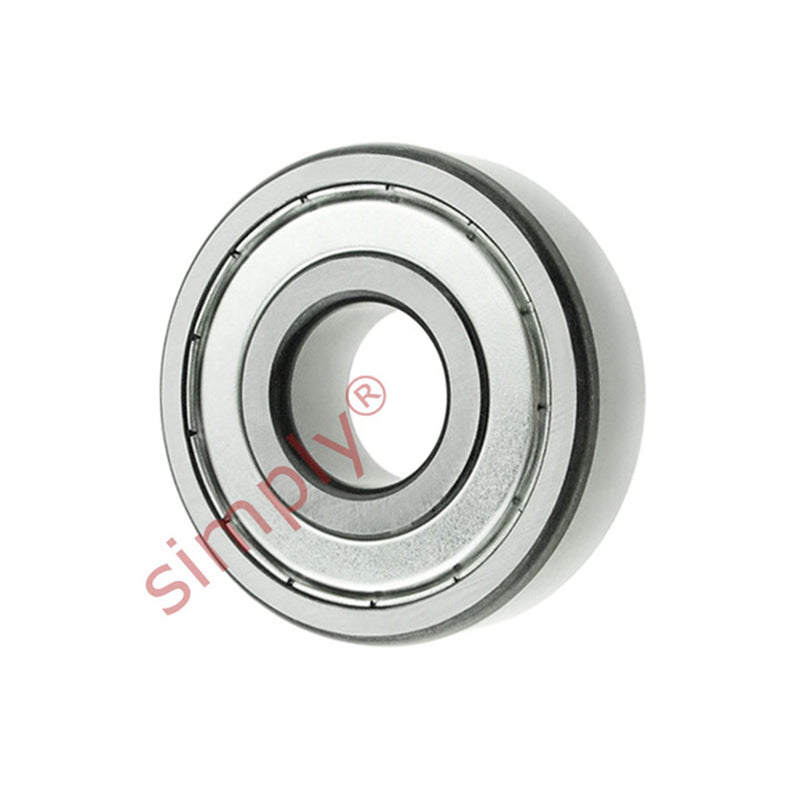

FAG 62032ZTN9C3VT223B Metal Shielded Deep Groove Ball Bearing 17x40x12mm
FAG 62032ZTN9C3VT223B Metal Shielded Deep Groove Ball Bearing 17x40x12mm
Equivalent to: 6203ZZTN9C3VT223B 62032ZRTN9C3VT223B
Out of stock
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 12mm |
| Dynamic load C | 8.06 kN |
| Static load Co | 3.75 kN |
| Fatigue load limit Pu | 0.16 kN |
| Reference speed | 43000 rpm |
| Limiting speed | 22000 rpm |
| Mass | 0.045 kg |
| d1 | 21.7mm |
| D2 | 30.4mm |
| r1r2 min | 0.6mm |
| da min | 19.2 |
