SKU: 61803-2Z/C3-SKF

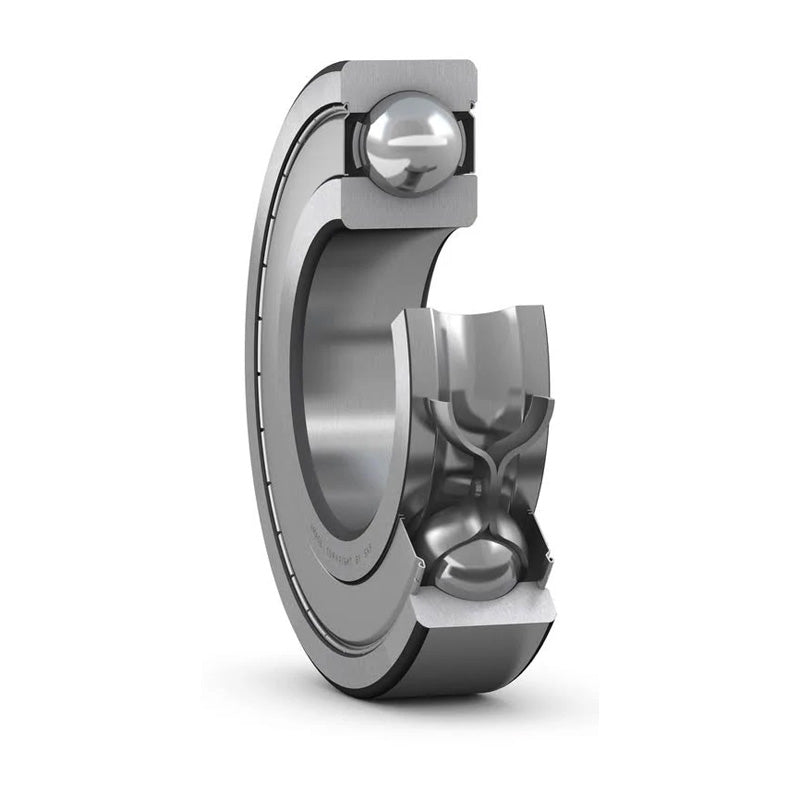

SKF 618032ZC3 Metal Shielded Thin Section Deep Groove Ball Bearing 17x26x5mm
Equivalent to: 61803ZZEC3 61803ZZC3 61803.2ZC3 61803KDDC3 61803DDC3 618032ZRC3 61803FFC3 6803ZZEC3 6803ZZC3 68032ZC3 6803.2ZC3 6803KDDC3 6803DDC3 68032ZRC3 6803FFC3
Out of stock
Share this product
Description
|
Metal Shielded Thin Section Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 26mm
- Width:
- 5mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 17mm |
|---|---|
| D | 26mm |
| B | 5mm |
| Dynamic load C | 1.68 kN |
| Static load Co | 0.93 kN |
| Fatigue load limit Pu | 0.039 kN |
| Reference speed | 56000 rpm |
| Limiting speed | 28000 rpm |
| Weight | 0.0082 kg |
| d1 | 20.2mm |
| d2 | 0mm |
| D2 | 24.1mm |
| r1r2 min | 0.3mm |
| da min | 19mm |
| da max | 0mm |
| Da max | 24mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.015 |
| Calculation factor f0 | 10 |
