SKU: 6009-2NSE/C3-NACHI
NACHI 60092NSEC3 Contact Rubber Sealed Deep Groove Ball Bearing 45x75x16mm
NACHI 60092NSEC3 Contact Rubber Sealed Deep Groove Ball Bearing 45x75x16mm
Regular price
CHF 14.00
ex VAT
Regular price
Sale price
CHF 14.00
ex VAT
Equivalent to: 6009NSEC3 6009DUC3 6009RSC3 6009RSHC3 6009PC3 6009RSRC3 6009LUC3 6009DDUC3 60092RSC3 60092RS1C3 60092RSHC3 6009PPC3 60092RSRC3 6009LLUC3
In stock
Price Break
5+
CHF 10.66
9+
CHF 10.06
19+
CHF 9.94
29+
CHF 9.82
49+
CHF 9.70
74+
CHF 9.58
99+
CHF 8.99
199+
CHF 8.87
249+
CHF 8.75
499+
CHF 8.63
999+
CHF 8.39
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
Equivalent: 6009NSEC3 6009DUC3 6009RSC3 6009RSHC3 6009PC3 6009RSRC3 6009LUC3 6009DDUC3 60092RSC3 60092RS1C3 60092RSHC3 6009PPC3 60092RSRC3 6009LLUC3
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 75mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical

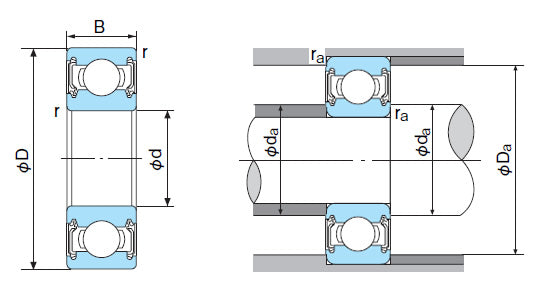

| Inside Diameter d | 45mm |
|---|---|
| Outside Diameter D | 75mm |
| Width B | 16mm |
| Min radius r | 1mm |
| Dynamic load | 20900 kN |
| Static load | 15200 kN |
| Max speed | 9200 rpm |
| da min | 50mm |
| Da max | 70mm |
| ra max | 1mm |
| Weight | 0.246 kg |
