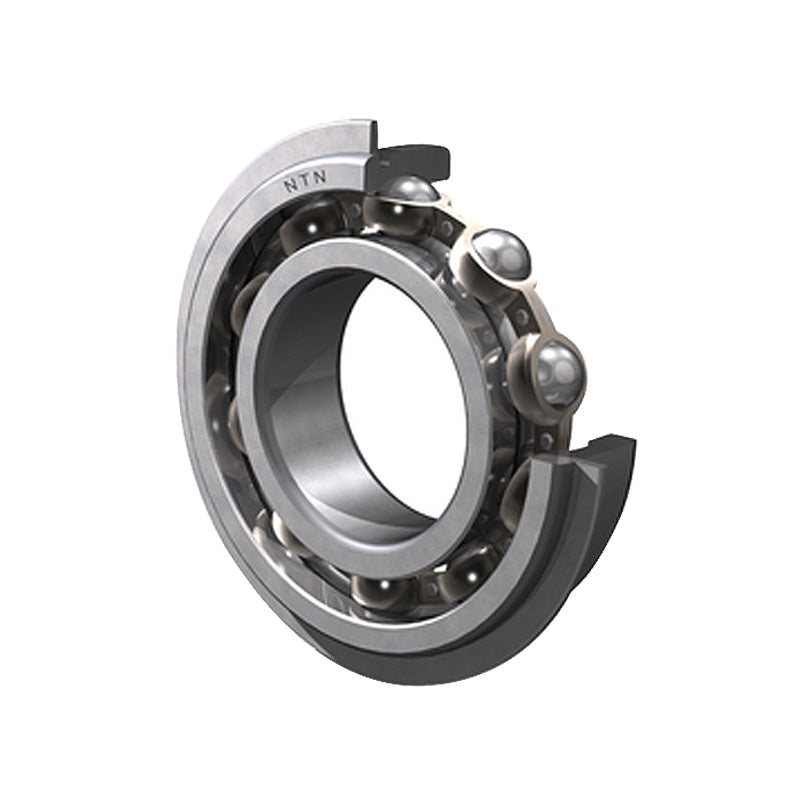

• NTN 6007NR Open Type Deep Groove Ball Bearing with Snap Ring 35x62x14mm
1 1

SKU: 6007NR-NTN

NTN 6007NR Open Type Deep Groove Ball Bearing with Snap Ring 35x62x14mm

NTN 6007NR Open Type Deep Groove Ball Bearing with Snap Ring 35x62x14mm
CHF 17.00 ex VAT
CHF 17.00 ex VAT
Sale Sold out

Equivalent to: 6007NRCM 9107KG 107KSG 43L07

In stock

Price Break
3+ CHF 13.55
5+ CHF 12.78
10+ CHF 12.63
25+ CHF 12.48
49+ CHF 12.33
74+ CHF 12.18
99+ CHF 11.42
199+ CHF 11.26
249+ CHF 11.11
499+ CHF 10.96
999+ CHF 10.65
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Snap ring location in housings, Rubber and Metal Sealed versions available


Equivalent: 6007NRCM 9107KG 107KSG 43L07
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Outside Diameter:
62mm
Width:
14mm
Seals / Shields:
None
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 35mm
D 62mm
B 14mm
r<sub>s</sub> min 1mm
rNS Min. 0.5mm
--- Loads angles and speeds
C<sub>r</sub> 17.7 kN
C<sub>or</sub> 10.3 kN
C<sub>u</sub> 0.805 kN
f<sub>0</sub> 14.8 kN
Grease 12000 rpm
Oil 14000 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 59.61mm
a Max. 2.08mm
b Min. 1.9mm
r<sub>o</sub> Max. 0.6mm
D<sub>2</sub> Max. 67.7mm
f Max. 1.7mm
--- Fitting Dimensions
d<sub>a</sub> Min. 40mm
d<sub>a</sub> Max. 42mm
D<sub>a</sub> Max. 57mm
D<sub>X</sub> (approx) 68.5mm
C<sub>Y</sub> Max. 3.4mm
C<sub>Z</sub> Min. 1.7mm
r<sub>as</sub> Max. 1mm
r<sub>Nas</sub> Max. 0.5mm
Weight 0.155 kg
