SKU: 1206K-KSM
KSM 1206K Open Self Aligning Ball Bearing with Tapered Bore 30x62x16mm
KSM 1206K Open Self Aligning Ball Bearing with Tapered Bore 30x62x16mm
Regular price
CHF 19.00
ex VAT
Regular price
Sale price
CHF 19.00
ex VAT
Equivalent to: 1206EK 1206KTV 1206KTVH 1206KSA 1206KE 1206KE/TG
In stock
Price Break
4+
CHF 14.44
9+
CHF 13.63
19+
CHF 13.47
29+
CHF 13.31
49+
CHF 13.14
99+
CHF 12.98
179+
CHF 12.17
249+
CHF 12.01
499+
CHF 11.84
699+
CHF 11.68
999+
CHF 11.36
Share this product
Description
Description
|
Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds |
Equivalent: 1206EK 1206KTV 1206KTVH 1206KSA 1206KE 1206KE/TG
- Brand / Quality:
- KSM - Good Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 16mm
Technical
Technical

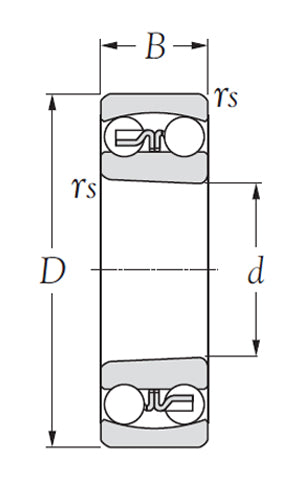

| --- | Bearing Dimensions |
|---|---|
| d | 30mm |
| D | 62mm |
| B | 16mm |
| r1r2 min | 1mm |
| --- | Speeds, Weights and Loads |
| Basic Load Raiting Dynamic Cr | 15600 N |
| Basic Static Load Raiting Cor | 4650 N |
| Limiting Speed in Grease | 9200 rpm |
| Limiting Speed in Oil | 11000 rpm |
| Weight | 0.217 kg |
| --- | Matching Adaptor Sleeves |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H206+sleeve>H206</a> |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS206+sleeve>HS206</a> |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA206+sleeve>HA206</a> |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE206+sleeve>HE206</a> |
