SKU: 08B-1-SNX-NO30-RENOLD
Renold SYNO 08B-1-NO30 BS Simplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- CHF 27.00 ex VAT
- Sale price
- CHF 27.00
- Regular price
-
Not in stock
Quantity Price Breaks
2
CHF 24.03
5
CHF 22.68
10
CHF 22.41
29
CHF 22.14
49
CHF 21.87
75
CHF 21.60
100
CHF 20.25
200
CHF 19.98
250
CHF 19.71
500
CHF 19.44
1000
CHF 18.90
SKU:
08B-1-SNX-NO30-RENOLD
Renold SYNO 08B-1-NO30 BS Simplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- CHF 27.00 ex VAT
- Sale price
- CHF 27.00
- Regular price
-
Description

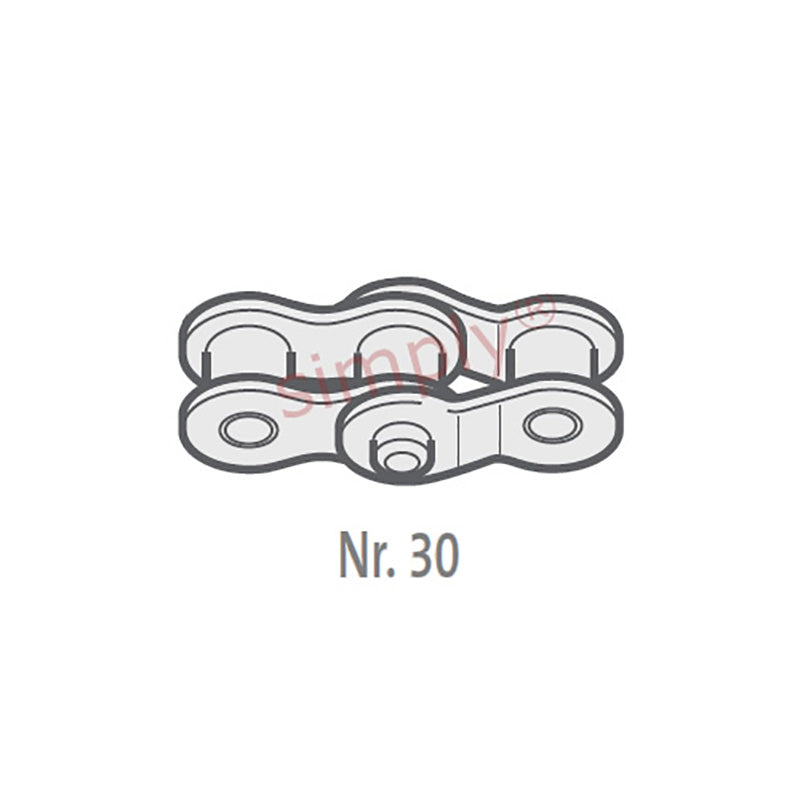

| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical

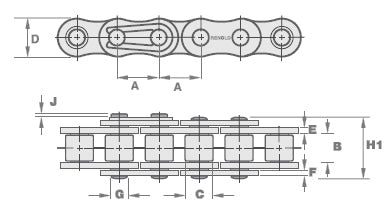

| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.7mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H1) | = | 16.5mm |
| Connecting Link Extension max (J) | = | 2mm |
| ISO606 Tensile Strength min | = | 17800 N |
| Weight | = | 0.003kg/m |
