SKU: YAT216-300-SKF

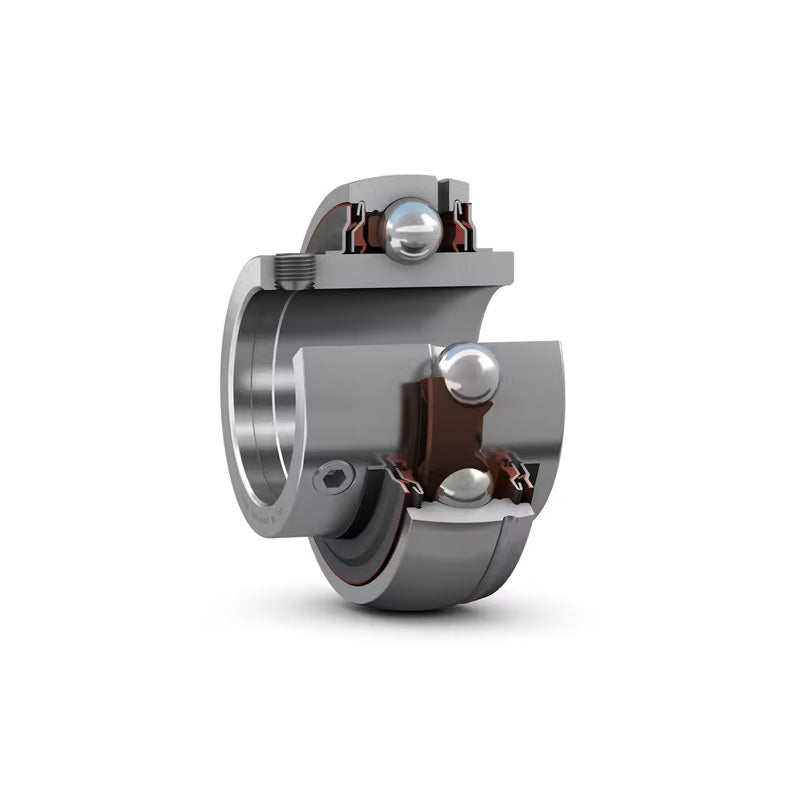

SKF YAT216-300 Grub Screw Type Bearing Insert 3 inch Bore 140mm Outside Diameter
SKF YAT216-300 Grub Screw Type Bearing Insert 3 inch Bore 140mm Outside Diameter
Out of stock
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Outside Diameter:
- 140mm
- Style:
- YAT
Technical
Technical
| d | 3 inch |
|---|---|
| D | 140mm |
| B | 55.5mm |
| C | 30mm |
| d1 | 97.4mm |
| s1 | 39mm |
| r1r2 min | 2mm |
| Static load Cr | 53 kN |
| Dynamic load Cor | 72.8 kN |
| Fatigue load limit Pu | 2.16 kN |
| Limiting speed | 2400 rpm |
| Weight | 2.35 kg |
