XPZ1420 Premier Quality XPZ-Section Cogged V-Belt

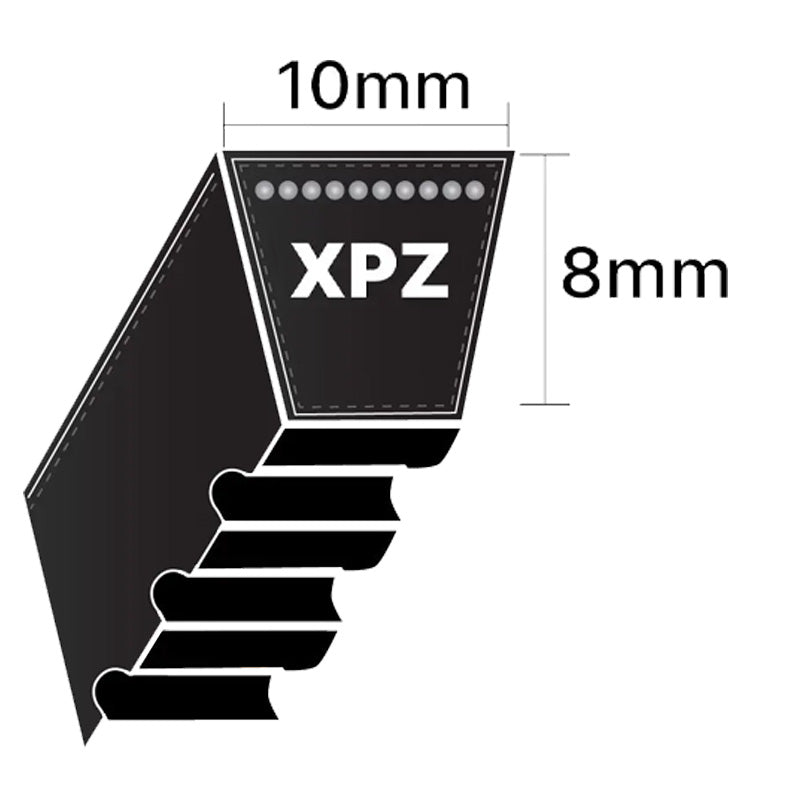

XPZ Section Cogged Type V Belts: Premier longer life cogged 10x8mm (3/8x5/16 inch) belts, premium quality cogged belts offer greater air flow which can greatly improve running temperatures. As cogged belts aren't wrapped the cross sectional area that would normally be occupied by the cover is used for greater load carrying cord. Cogged belts tend to be far more flexible and can be operated with significantly smaller sheaves.
Benefits: Premium quality cogged profile to fit ISO 4183/4184 pulleys, Low stretch polyester tensile member, Oil, ozone and abrasion resistant, Temperature resistance: -20deg C to +70deg C, Static conductive to ISO 1813
Note: Matched Pairs: All V Belts conform to DIN 2215 (For Classic V Belts Z, A, B, C, D, etc) and DIN 7753 (For Wedge Type Belts SPZ, SPA, SPB etc) and ISO 4184 and as such will match taking into account dimensional tolerances. If you require belts from the same batch, please contact our Sales Support Team who will gladly assist you further.

Brand / Quality:

Premier - High Quality

Belt Number:

XPZ1420

Inside Length Approx:

1382mm

Outside Length Approx:

1433mm

Belt Width Approx:

10mm

Belt Depth Approx:

8mm

Belt Datum Length Approx:

1420mm
