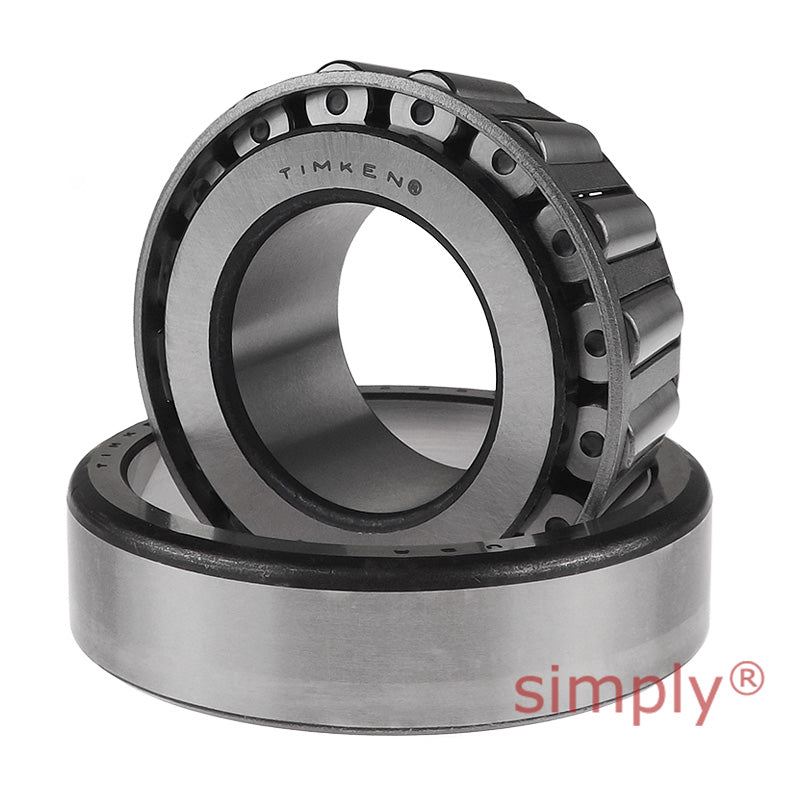

• Timken XGA33211/Y33211 TS Single-Row Taper Roller Bearing 2.0006x3.937x1.378 inch
1 1

SKU: XGA33211/Y33211-TIM

Timken XGA33211/Y33211 TS Single-Row Taper Roller Bearing 2.0006x3.937x1.378 inch

Timken XGA33211/Y33211 TS Single-Row Taper Roller Bearing 2.0006x3.937x1.378 inch
CHF 344.00 ex VAT
CHF 344.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 275.12
20+ CHF 259.66
30+ CHF 256.57
40+ CHF 253.48
50+ CHF 250.39
75+ CHF 247.29
100+ CHF 231.84
200+ CHF 228.75
250+ CHF 225.66
500+ CHF 222.56
1000+ CHF 216.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JL_TAPER_DESC
Brand / Quality:
Timken - High Quality
Inside Diameter:
50.8mm = 2 inch
Outside Diameter:
100mm = 3.937 (3-15/16) inch
Width:
35mm = 1.378 inch
Technical
d 50.815mm = 2.0006 inch
D 100mm = 3.937 inch
T 35mm = 1.378 inch
Dynamic (1) C1 150000N
Factors (5) e 0.4
Factors (5) Y 1.5
Dynamic (2) C90 38900N
Dynamic (2) Ca90 26600N
Factors (5) K 1.46
Static C0 202000N
Bearing B 35mm = 1.378 inch
Bearing C 27mm = 1.063 inch
Bearing a(3) -9.7mm = -0.38 inch
Shaft max shaft fillet radius R(4) 2mm = 0.08 inch
Shaft backing shoulder diameter da 62mm = 2.44 inch
Shaft backing shoulder diameter db 67mm = 2.64 inch
Housing backing shoulder diameter r(4) 1.5mm = 0.06 inch
Housing backing shoulder diameter Da 96mm = 3.78 inch
Housing backing shoulder diameter Db 89mm = 3.5 inch
Cage Aa 2.9mm = 0.11 inch
Cage Ab 2.8mm = 0.11 inch
G1 59.3
G2 15.3
Cg 0.101
