SKU: WSSC35-JCS

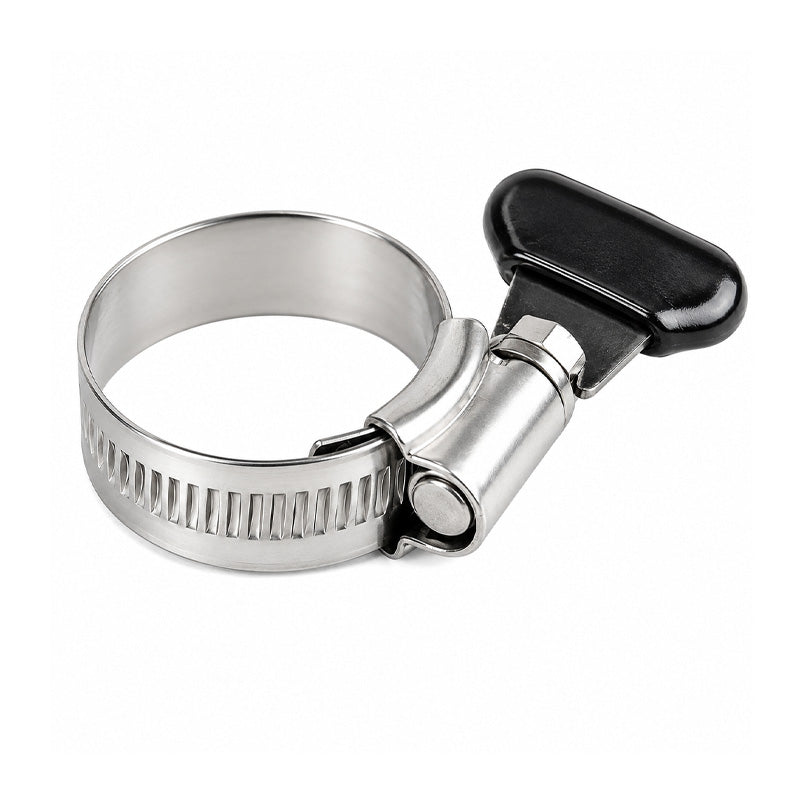

JCS WSSC35 304 Stainless Steel Hi-Grip Wing Screw Adjustment Range 25-35mm Band Width 13mm
JCS WSSC35 304 Stainless Steel Hi-Grip Wing Screw Adjustment Range 25-35mm Band Width 13mm
Out of stock
Share this product
Description
Description
304 Stainless Steel Hi-Grip Wing Screw: Specifically designed for frequently removed hoses, the unique dovetail locking and side lugs of the wing plate ensure excellent sealing and longevity. Hi-Grip stainless steel hose clips have become the industry standard for demanding applications throughout the world due to their exceptional quality and performance. Made entirely from 18/8 marine quality stainless steel and with Lloyds Register Approval, they are ideal for saltwater and other corrosive environments.
- Brand / Quality:
- JCS - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 25mm
- Max Adjustment Range:
- 35mm
Technical
Technical
| BS No. | 35 |
|---|---|
| Adjustment Range (mm) | 25-35mm |
| Adjustment Range (inch) | 1 - 1-3/8 inch |
| A | 8mm |
| B | 32mm |
| C | 12mm |
| D | 15mm |
| E | 13mm |
| F | 0.9mm |
| G | 24mm |
| Recommended Torque Nm | 5Nm |
| Recommended Torque lb-in | 45lb-in |
