SKU: WSSC16-JCS

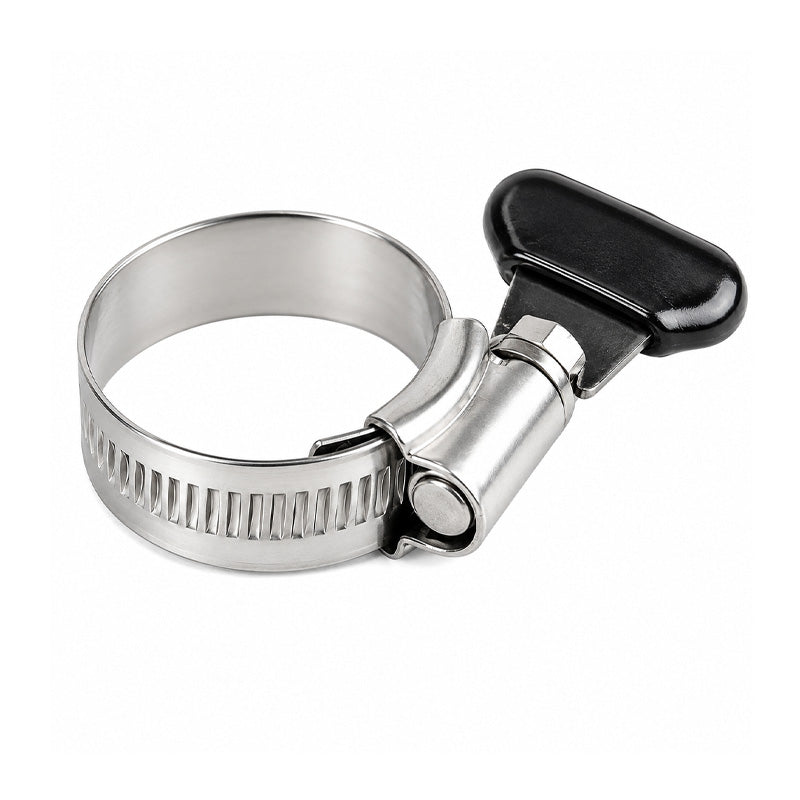

JCS WSSC16 304 Stainless Steel Hi-Grip Wing Screw Adjustment Range 11-16mm Band Width 9mm
JCS WSSC16 304 Stainless Steel Hi-Grip Wing Screw Adjustment Range 11-16mm Band Width 9mm
Out of stock
Share this product
Description
Description
304 Stainless Steel Hi-Grip Wing Screw: Specifically designed for frequently removed hoses, the unique dovetail locking and side lugs of the wing plate ensure excellent sealing and longevity. Hi-Grip stainless steel hose clips have become the industry standard for demanding applications throughout the world due to their exceptional quality and performance. Made entirely from 18/8 marine quality stainless steel and with Lloyds Register Approval, they are ideal for saltwater and other corrosive environments.
- Brand / Quality:
- JCS - High Quality
- Width:
- 9mm
- Min Adjustment Range:
- 11mm
- Max Adjustment Range:
- 16mm
Technical
Technical
| BS No. | 16 |
|---|---|
| Adjustment Range (mm) | 11-16mm |
| Adjustment Range (inch) | 1/2 - 5/8 inch |
| A | 7mm |
| B | 31mm |
| C | 10mm |
| D | 12mm |
| E | 9mm |
| F | 0.7mm |
| G | 24mm |
| Recommended Torque Nm | 3Nm |
| Recommended Torque lb-in | 26lb-in |
