SKU: WSSC12-JCS

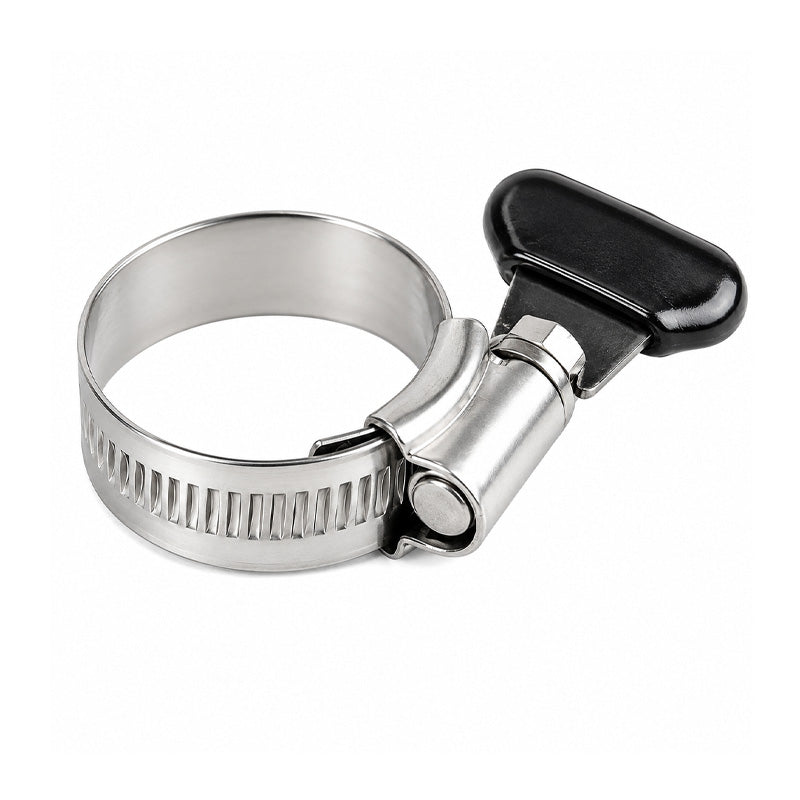

JCS WSSC12 304 Stainless Steel Hi-Grip Wing Screw Adjustment Range 9.5-12mm Band Width 9mm
JCS WSSC12 304 Stainless Steel Hi-Grip Wing Screw Adjustment Range 9.5-12mm Band Width 9mm
Out of stock
Share this product
Description
Description
304 Stainless Steel Hi-Grip Wing Screw: Specifically designed for frequently removed hoses, the unique dovetail locking and side lugs of the wing plate ensure excellent sealing and longevity. Hi-Grip stainless steel hose clips have become the industry standard for demanding applications throughout the world due to their exceptional quality and performance. Made entirely from 18/8 marine quality stainless steel and with Lloyds Register Approval, they are ideal for saltwater and other corrosive environments.
- Brand / Quality:
- JCS - High Quality
- Width:
- 9mm
- Min Adjustment Range:
- 9.5mm
- Max Adjustment Range:
- 12mm
Technical
Technical

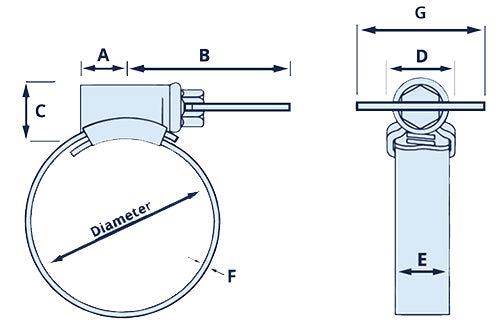

| BS No. | 12 |
|---|---|
| Adjustment Range (mm) | 9.5-12mm |
| Adjustment Range (inch) | 3/8 - 1/2 inch |
| A | 7mm |
| B | 31mm |
| C | 10mm |
| D | 12mm |
| E | 9mm |
| F | 0.7mm |
| G | 24mm |
| Recommended Torque Nm | 3Nm |
| Recommended Torque lb-in | 26lb-in |
