SKU: WMX.9510060

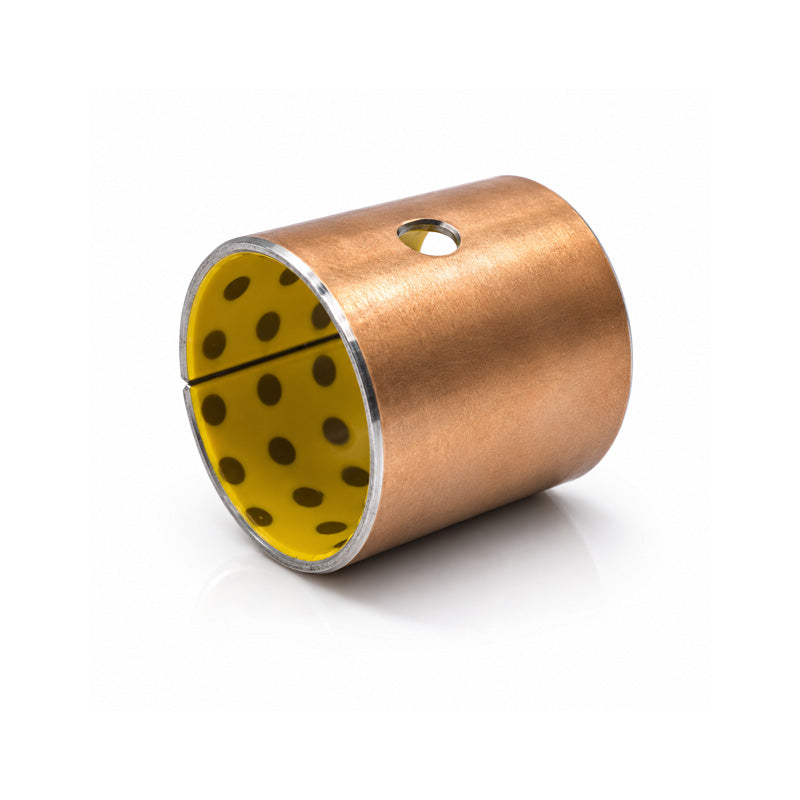

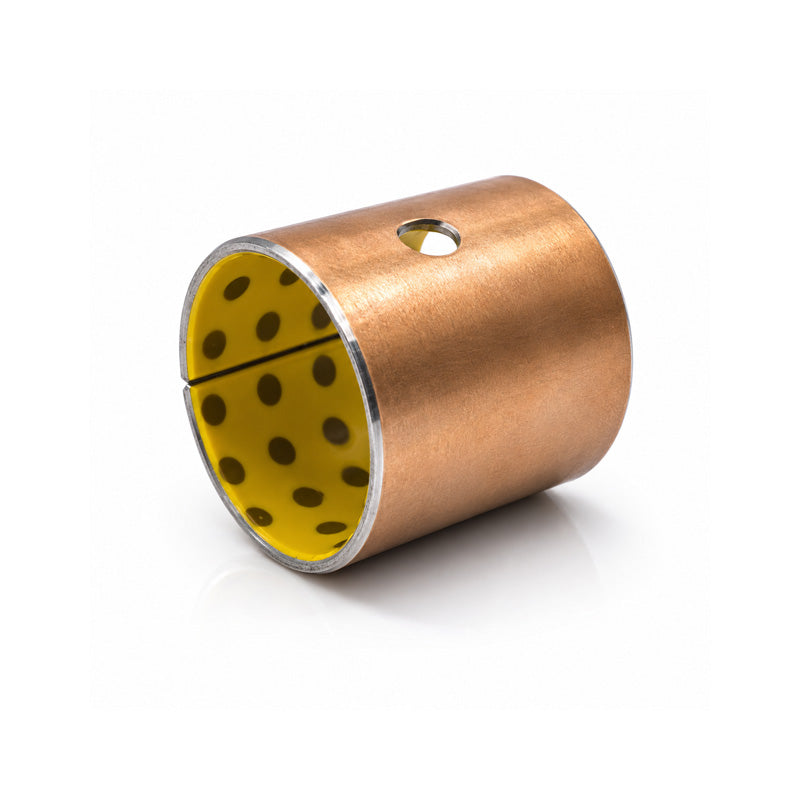

WMX9510060 Metric Wrapped Acetal Lined Plain Bush 95x100x60mm
WMX9510060 Metric Wrapped Acetal Lined Plain Bush 95x100x60mm
Regular price
CHF 15.00
ex VAT
Regular price
Sale price
CHF 15.00
ex VAT
In stock
Price Break
10+
CHF 13.14
20+
CHF 12.61
50+
CHF 12.34
100+
CHF 11.94
500+
CHF 11.68
1000+
CHF 11.01
Quantity
Couldn't load pickup availability
Description
Description
Wrapped Acetal Lined Plain Bushes: These bushes are high-performance, self-lubricating bearings designed for applications requiring low friction and maintenance-free operation. The WMX range is ideal for the automotive, machine building and agricultural industries, as well as any application where lubricant cannot be supplied continuously.
Benefits: Low friction, wear resistant, high load capacity
- Brand / Quality:
- Simply Plastic Bushes - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 100mm
- Length:
- 60mm
Technical
Technical
| Inside Diameter (d) | 95mm |
|---|---|
| Outside Diameter (D) | 100mm |
| Length (B) | 60mm |
| Overall Length Tolerance | 59.75mm min to 60.25mm max |
| Recommended Housing Size Tolerance | 100mm min to 100.035mm max H7 |
| Shaft Diameter Tolerance | 94.946mm min to 95mm max |
| Inside Diameter when Fitted Tolerance | 95.1mm min to 95.267mm max |
| Inside Chamfers Tolerance | 0.2mm min to 1mm max |
| Outside Chamfers Tolerance | 1.2mm min to 2.4mm max |
| Max PV | 2.8 N/mm squared x m/s |
| Max Static Load | 70 N/mm squared |
| Max Dynamic Load | 70 N/mm squared |
| Max Sliding Speed -With Grease | 2.5 m/s |
| Operating Temperature | -40 to 110 Deg C |
| Thermal Conductivity | 2 W/mk |
| Coefficient of Friction - With Grease | 0.05 to 0.15 |
| Recommended Shaft Hardness | 200 min HB |
