SKU: UKT213/HE2313

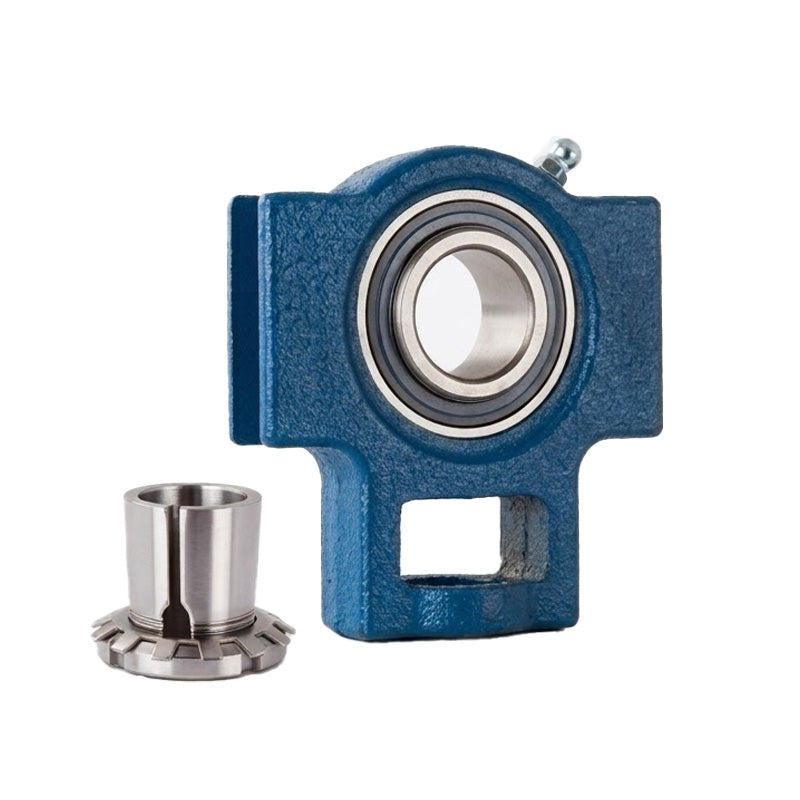

UKT213/HE2313 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 2-1/4 inch Shaft
UKT213/HE2313 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 2-1/4 inch Shaft
Regular price
CHF 135.00
ex VAT
Regular price
Sale price
CHF 135.00
ex VAT
In stock
Price Break
3+
CHF 107.95
4+
CHF 101.88
9+
CHF 100.67
19+
CHF 99.46
49+
CHF 98.25
99+
CHF 97.03
499+
CHF 90.97
999+
CHF 89.76
1999+
CHF 88.54
2999+
CHF 87.33
4999+
CHF 84.90
Quantity
Couldn't load pickup availability
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- UKT

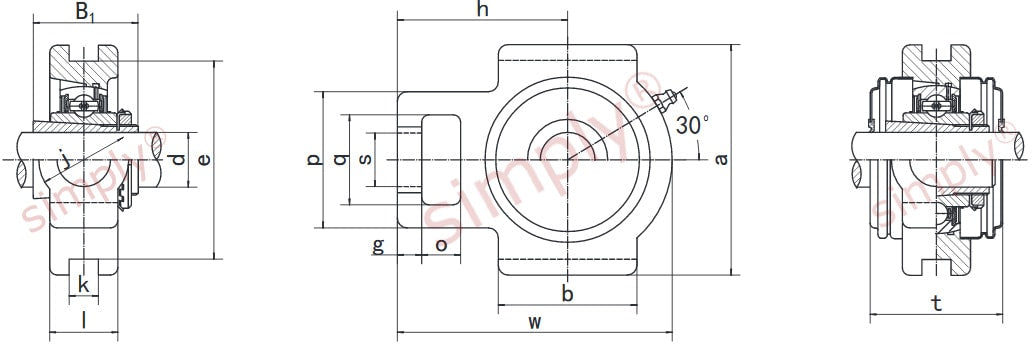

Technical
Technical
| d | 2-1/4 inch |
|---|---|
| o | 1-17/64 inch |
| g | 53/64 inch |
| p | 4-3/8 inch |
| q | 2-3/4 inch |
| s | 1-39/64 inch |
| b | 4-49/64 inch |
| k | 1-1/32 inch |
| e | 5-15/16 inch |
| a | 6-37/64 inch |
| w | 8-13/16 inch |
| j | 2-3/4 inch |
| l | 1-23/32 inch |
| h | 5-25/64 inch |
| t | 3-1/2 inch |
| B1 | 2.559 inch |
| Bearing no | UK213;HE2313 |
| Housing no | T213 |
| Weight | 6.56 kg |
