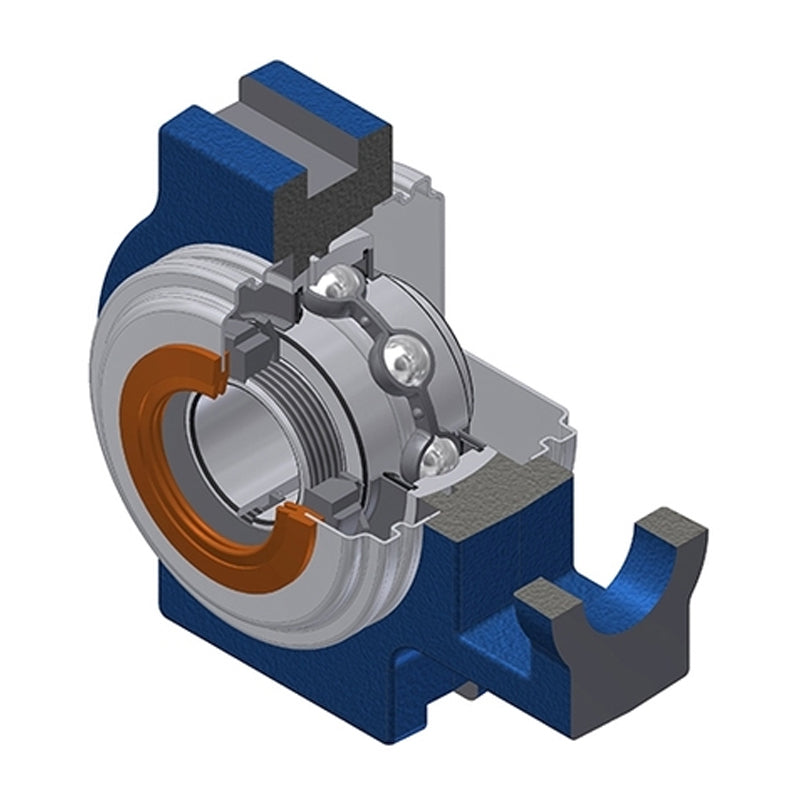

SNR UKT210HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 45mm Shaft - Closed Version - Allow 2-3 Days
SNR UKT210HCC Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 45mm Shaft - Closed Version - Allow 2-3 Days
Regular price
CHF 80.00
ex VAT
Regular price
Sale price
CHF 80.00
ex VAT
In stock
Price Break
3+
CHF 63.53
4+
CHF 59.96
9+
CHF 59.25
19+
CHF 58.53
49+
CHF 57.82
99+
CHF 57.10
499+
CHF 53.53
999+
CHF 52.82
1999+
CHF 52.11
2999+
CHF 51.39
4999+
CHF 49.97
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UKT
Technical
Technical

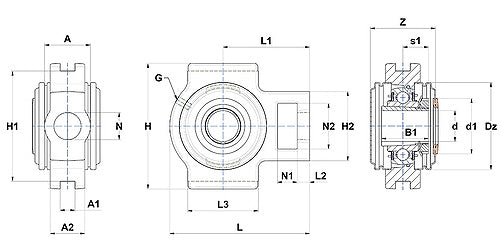

| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 49mm |
| A1 | 16mm |
| A2 | 37mm |
| B1 | 55mm |
| d1 | 70mm |
| H | 117mm |
| H1 | 102mm |
| H2 | 83mm |
| L | 149mm |
| L1 | 90mm |
| L2 | 16mm |
| L3 | 86mm |
| N | 29mm |
| N1 | 19mm |
| N2 | 49mm |
| Dz | 100mm |
| Z | 74.6mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2310 |
| Mass | 2.752 kg |
