SKU: UCTX07-22
UCTX07-22 Imperial Cast Iron Take Up Unit Housing with 1-3/8 inch Bore Insert
UCTX07-22 Imperial Cast Iron Take Up Unit Housing with 1-3/8 inch Bore Insert
Regular price
CHF 43.00
ex VAT
Regular price
Sale price
CHF 43.00
ex VAT
In stock
Price Break
3+
CHF 34.22
4+
CHF 32.30
9+
CHF 31.91
19+
CHF 31.53
49+
CHF 31.14
99+
CHF 30.76
499+
CHF 28.84
999+
CHF 28.45
1999+
CHF 28.07
2999+
CHF 27.68
4999+
CHF 26.91
Quantity
Couldn't load pickup availability
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- UCTX

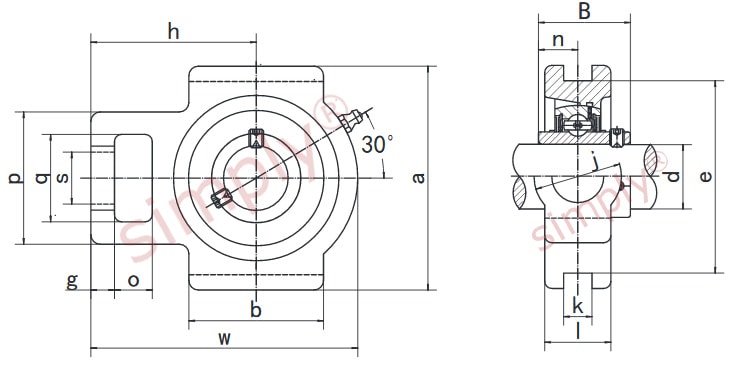

Technical
Technical
| d | 1-3/8 inch |
|---|---|
| o | 3/4 inch |
| g | 21/32 inch |
| p | 3-17/64 inch |
| q | 1-15/16 inch |
| s | 1-9/64 inch |
| b | 3-17/64 inch |
| k | 0.63 inch |
| e | 4-1/64 inch |
| a | 4-31/64 inch |
| w | 5-43/64 inch |
| j | 1-13/32 inch |
| l | 1-15/16 inch |
| h | 3-15/32 inch |
| B | 1.937 inch |
| n | 0.748 inch |
| Bearing no | UCX07-22 |
| Housing no | TX07 |
| Weight | 2.6 kg |
