SKU: UCT318-SNR
SNR UCT318 Metric Cast Iron Take Up Unit with 90mm Bore Bearing Unit - Allow 2-3 Days
SNR UCT318 Metric Cast Iron Take Up Unit with 90mm Bore Bearing Unit - Allow 2-3 Days
Regular price
CHF 336.00
ex VAT
Regular price
Sale price
CHF 336.00
ex VAT
In stock
Price Break
3+
CHF 268.14
4+
CHF 253.07
9+
CHF 250.06
19+
CHF 247.05
49+
CHF 244.03
99+
CHF 241.02
499+
CHF 225.96
999+
CHF 222.95
1999+
CHF 219.93
2999+
CHF 216.92
4999+
CHF 210.89
Quantity
Couldn't load pickup availability
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 90mm
- Style:
- UCT
Technical
Technical

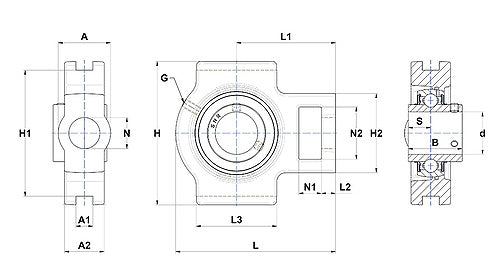

| --- | Dimensions |
|---|---|
| Shaft diameter d | 90mm |
| A | 110mm |
| A1 | 32mm |
| A2 | 66mm |
| B | 96mm |
| H | 255mm |
| H1 | 228mm |
| H2 | 160mm |
| L | 312mm |
| L1 | 192mm |
| L2 | 32mm |
| L3 | 175mm |
| N | 57mm |
| N1 | 46mm |
| N2 | 106mm |
| S | 40mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 143 kN |
| Static load C0 | 108 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 21.47 kg |
