SKU: UCT306
UCT306 Metric Cast Iron Take Up Unit Housing with 30mm Bore Insert
UCT306 Metric Cast Iron Take Up Unit Housing with 30mm Bore Insert
Regular price
CHF 27.00
ex VAT
Regular price
Sale price
CHF 27.00
ex VAT
In stock
Price Break
3+
CHF 21.37
4+
CHF 20.17
9+
CHF 19.93
19+
CHF 19.69
49+
CHF 19.45
99+
CHF 19.21
499+
CHF 18.01
999+
CHF 17.77
1999+
CHF 17.53
2999+
CHF 17.29
4999+
CHF 16.81
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- UCT

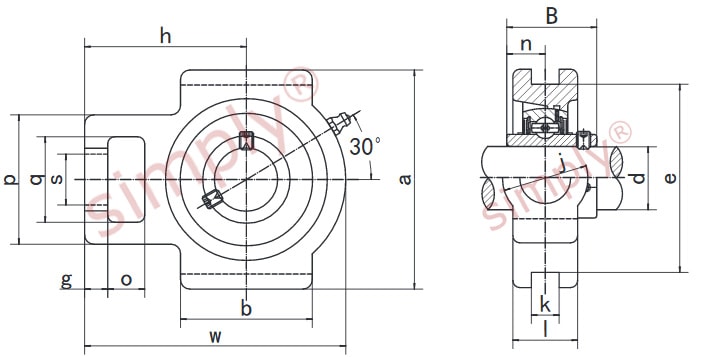

Technical
Technical
| d | 30mm |
|---|---|
| o | 18mm |
| g | 16mm |
| p | 70mm |
| q | 41mm |
| s | 28mm |
| b | 74mm |
| k | 16mm |
| e | 90mm |
| a | 100mm |
| w | 137mm |
| j | 41mm |
| l | 28mm |
| h | 85mm |
| B | 43mm |
| n | 17mm |
| Bearing no | UC306 |
| Housing no | T306 |
| Weight | 1.7 kg |
