SKU: UCT.207-22.TS.CHAL

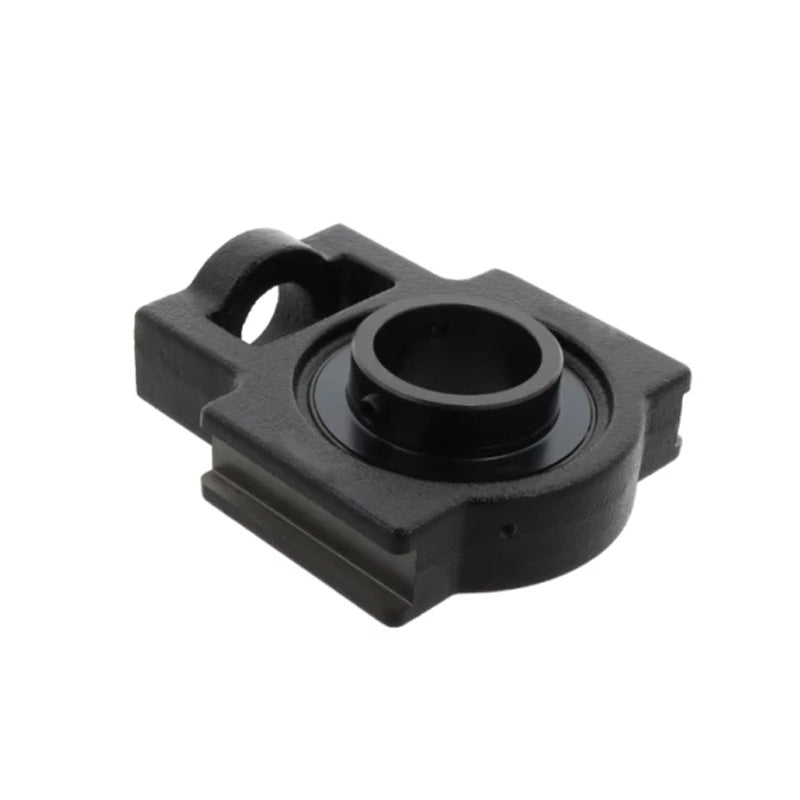

Challenge / FK UCT207-22 Imperial Cast Iron Take Up Unit Housing with 1-3/8 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCT207-22 Imperial Cast Iron Take Up Unit Housing with 1-3/8 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Shaft Diameter d 1-3/8 inch
Nut Slot Width o 16mm
Distance g 13mm
Dimention p 64mm
Dimention q 37mm
Hole s 22mm
Dimention b 64mm
Slot Width k 12mm
Distance Between Slots e 89mm
Overall Casting Depth a 102mm
Width w 129mm
Diameter j 37mm
Casting Width at Slots l 30mm
Dimension h 78mm
Grub Screws x 2 5/16 - 24UNF
Load Rating (Dynamic) 2010kg
Load Rating (Static) 1390kg
Max Speed 2400 rev/min
Grease Nipple Thread Size M6
Working Temperature -30°C to +120°C
Insert No UC207-22
Housing No T207
