SKU: UCPA210-SNR

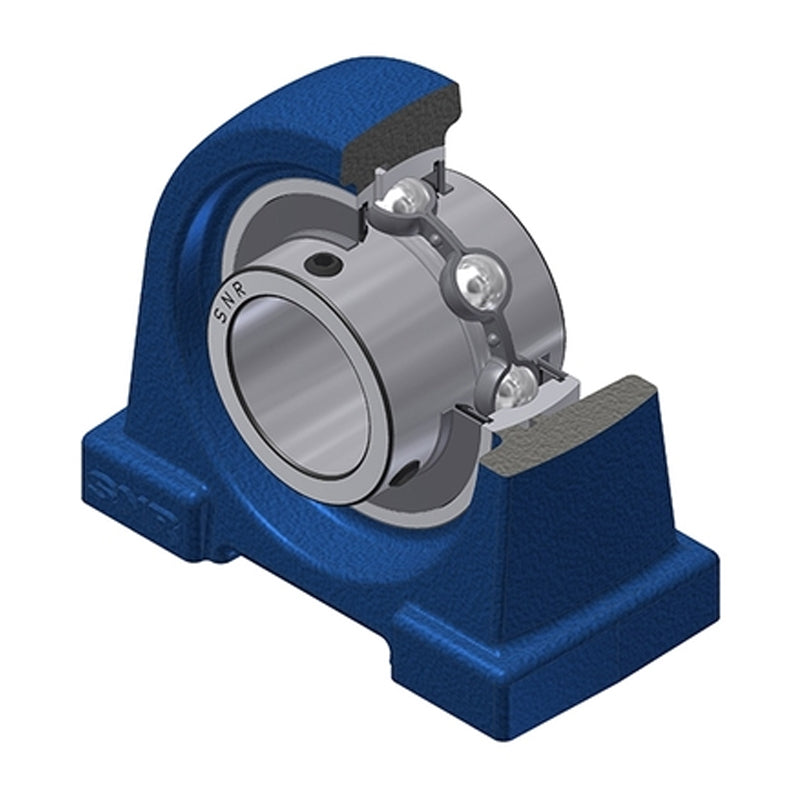

SNR UCPA210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 50mm Bore Insert
SNR UCPA210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 50mm Bore Insert
Regular price
CHF 59.00
ex VAT
Regular price
Sale price
CHF 59.00
ex VAT
In stock
Price Break
3+
CHF 47.19
4+
CHF 44.54
9+
CHF 44.01
19+
CHF 43.48
49+
CHF 42.95
99+
CHF 42.42
499+
CHF 39.76
999+
CHF 39.23
1999+
CHF 38.70
2999+
CHF 38.17
4999+
CHF 37.11
Quantity
Couldn't load pickup availability
Description
Description
|
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCPA
- Bolt Hole Centres:
- 94mm
Technical
Technical

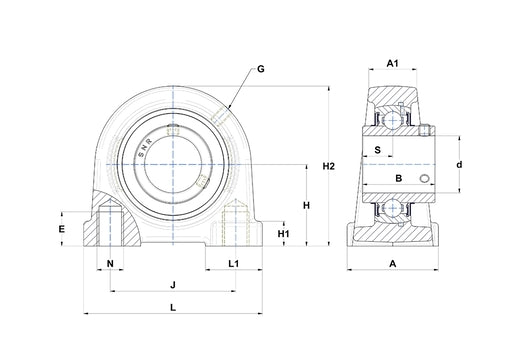

| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 60mm |
| A1 | 32mm |
| B | 51.6mm |
| E | 25mm |
| H | 57.2mm |
| H1 | 14mm |
| H2 | 116mm |
| J | 94mm |
| L | 130mm |
| L1 | 35mm |
| N | M16 |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 2.6 kg |
