SKU: UCLP202
UCLP202 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 15mm Insert
UCLP202 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 15mm Insert
Regular price
CHF 15.00
ex VAT
Regular price
Sale price
CHF 15.00
ex VAT
In stock
Price Break
3+
CHF 11.45
4+
CHF 10.80
9+
CHF 10.67
19+
CHF 10.55
49+
CHF 10.42
99+
CHF 10.29
499+
CHF 9.65
999+
CHF 9.52
1999+
CHF 9.39
2999+
CHF 9.26
4999+
CHF 9.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCLP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Style:
- UCLP
- Bolt Hole Centres:
- 95mm

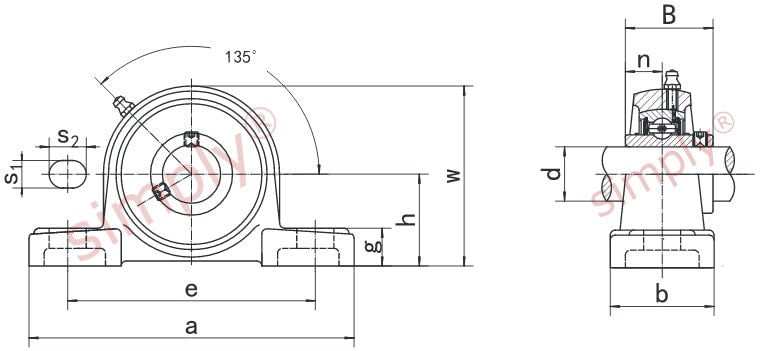

Technical
Technical
| d | 15mm |
|---|---|
| h | 31.75mm |
| a | 127mm |
| e | 95mm |
| b | 38mm |
| s1 | 13mm |
| s2 | 16mm |
| g | 14mm |
| w | 64mm |
| B | 31mm |
| n | 12.7mm |
| Bolt size | M10 |
| Bearing no | UC202 |
| Housing no | LP202 |
| Weight | 0.68 kg |
