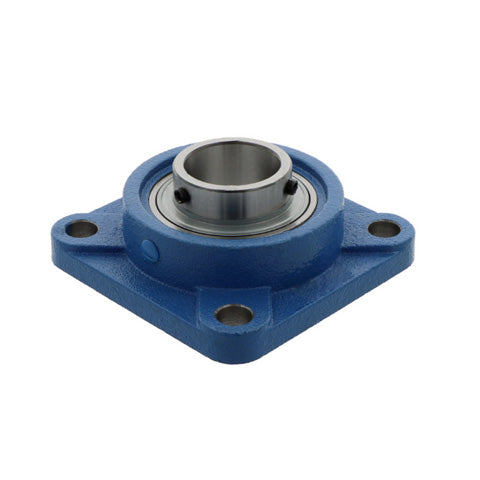

Challenge / FK UCFX12-36 Imperial Cast Iron Four Bolt Square Flange Housing with 2-1/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

UCFX Cast Iron Four Bolt Square Flange Housing: These medium-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing

Brand / Quality:

Challenge / FK - Good Quality

Inside Diameter:

57.15mm = 2.25 (2-1/4) inch

Style:

UCFX

Bolt Hole Centres:

149mm
