SKU: UCFLE206-SNR
SNR UCFLE206 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert
SNR UCFLE206 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert
Regular price
CHF 29.00
ex VAT
Regular price
Sale price
CHF 29.00
ex VAT
In stock
Price Break
3+
CHF 22.88
4+
CHF 21.59
9+
CHF 21.33
19+
CHF 21.08
49+
CHF 20.82
99+
CHF 20.56
499+
CHF 19.28
999+
CHF 19.02
1999+
CHF 18.76
2999+
CHF 18.51
4999+
CHF 17.99
Quantity
Couldn't load pickup availability
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCFLE
- Bolt Hole Centres:
- 116.5mm
Technical
Technical

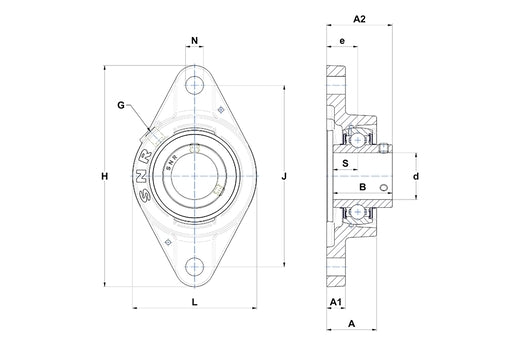

| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 32.1mm |
| A1 | 12mm |
| A2 | 42.2mm |
| B | 38.1mm |
| e | 20mm |
| H | 142mm |
| J | 116.5mm |
| L | 80mm |
| N | 11.5mm |
| S | 15.9mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.82 kg |
