SKU: UCFL311

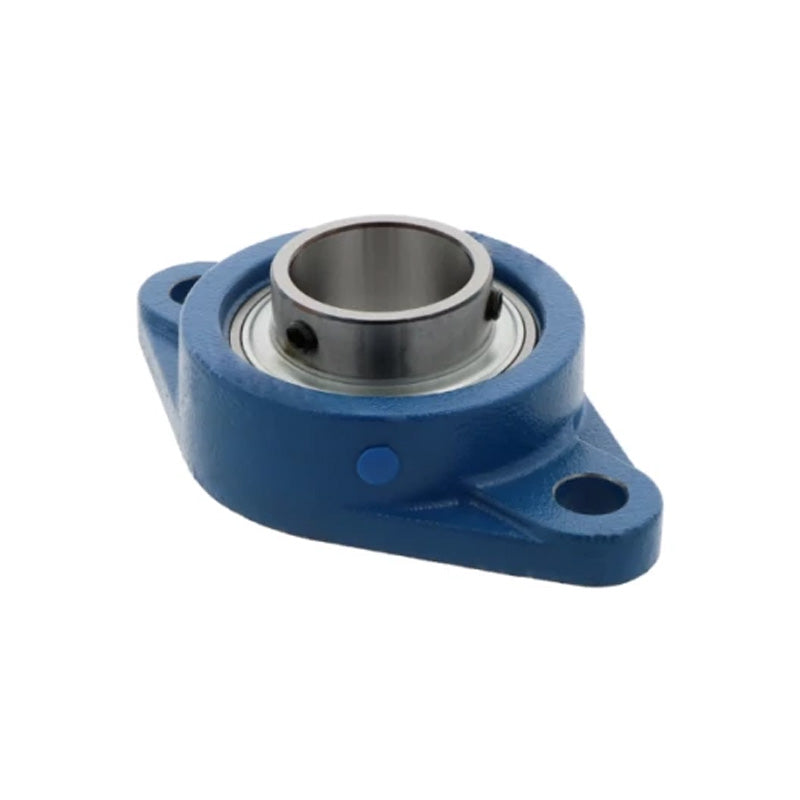

UCFL311 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 55mm Bore
UCFL311 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 55mm Bore
Regular price
CHF 94.00
ex VAT
Regular price
Sale price
CHF 94.00
ex VAT
In stock
Price Break
3+
CHF 74.83
4+
CHF 70.62
9+
CHF 69.78
19+
CHF 68.94
49+
CHF 68.10
99+
CHF 67.26
499+
CHF 63.06
999+
CHF 62.21
1999+
CHF 61.37
2999+
CHF 60.53
4999+
CHF 58.85
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Style:
- UCFL
- Bolt Hole Centres:
- 198mm

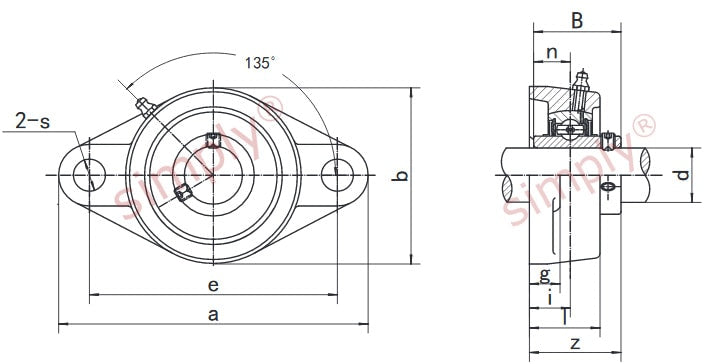

Technical
Technical
| d | 55mm |
|---|---|
| a | 250mm |
| e | 198mm |
| i | 30mm |
| g | 20mm |
| l | 52mm |
| s | 25mm |
| b | 150mm |
| z | 71mm |
| B | 66mm |
| n | 25mm |
| Bolt size | M22 |
| Bearing no | UC311 |
| Housing no | FL311 |
| Weight | 4.79 kg |
