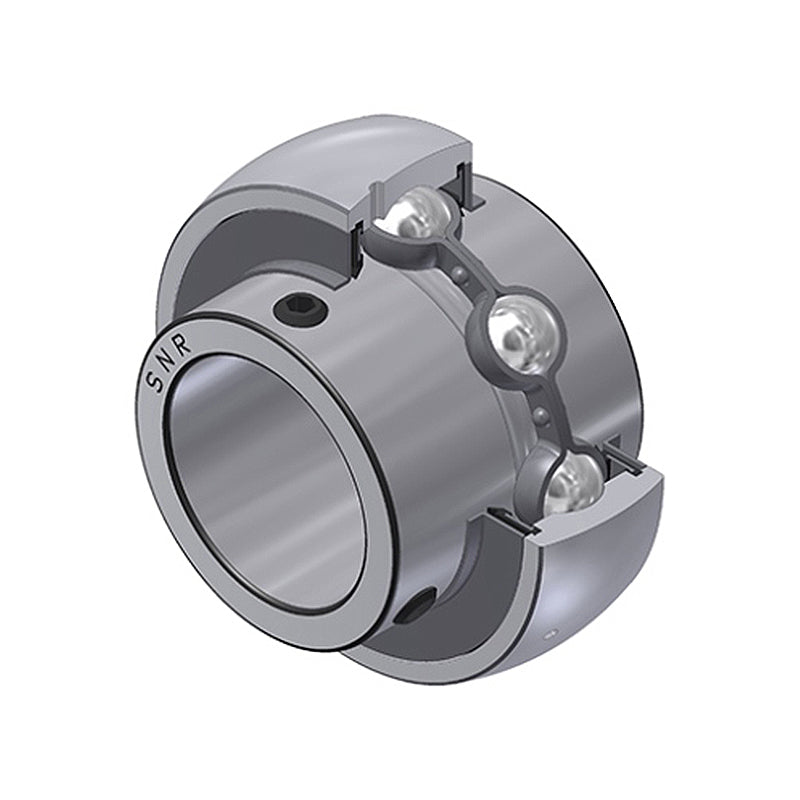

SNR UC312-36G2T04 Imperial Full Width Spherical Outer Low Temp Bearing Insert 2-1/4 inch Bore 130mm Outside Diameter with Grub Screws - Allow 2-3 Days

SNR UC-T04 Full Width Spherical Outer Low Temp Bearing Insert with Grub Screws: This bearing insert is engineered for low-temperature applications, operating effectively down to -40°C. Each steel insert includes a single lip seal and slinger on both sides, along with a wide inner ring design. It incorporates a zinc-coated sheet steel retainer over-molded with NBR, featuring an axially preloaded seal lip and a preconnected, zinc-coated sheet steel slinger for enhanced protection against mechanical impacts and particles. This insert is designed to withstand medium to high rotation speeds, ensuring reliable performance even in low-temperature environments.
Benefits: High-quality brand, high-performance, low temperature

Brand / Quality:

SNR - High Quality

Thread Size:

7/16-20UNF

Inside Diameter:

57.15mm = 2.25 (2-1/4) inch

Outside Diameter:

130mm

Width:

71mm

Temperature Range:

Low Temp

Style:

UC
