SKU: UC.212-36.TS.CHAL

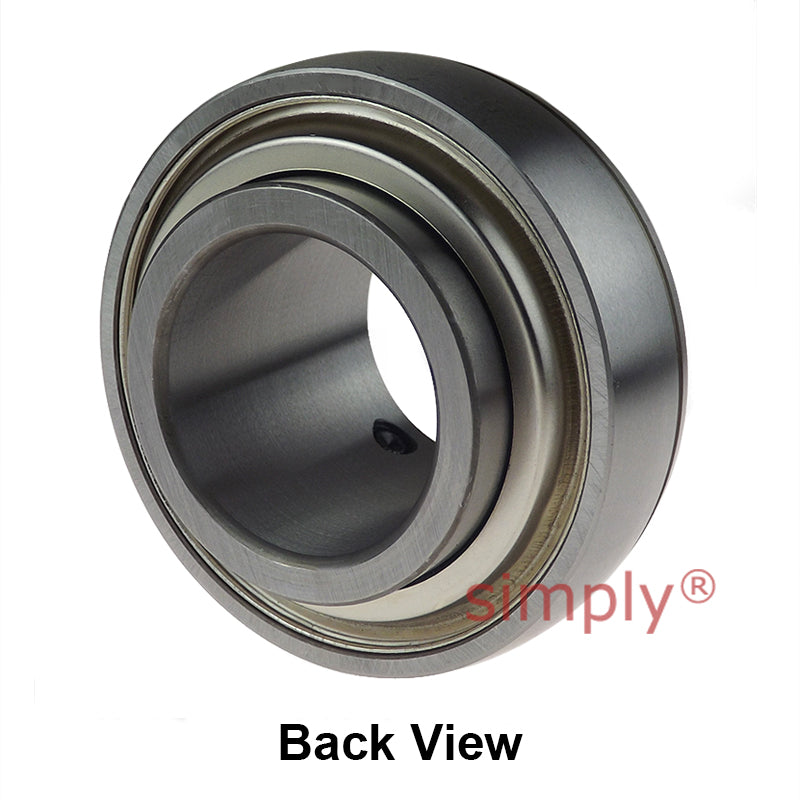

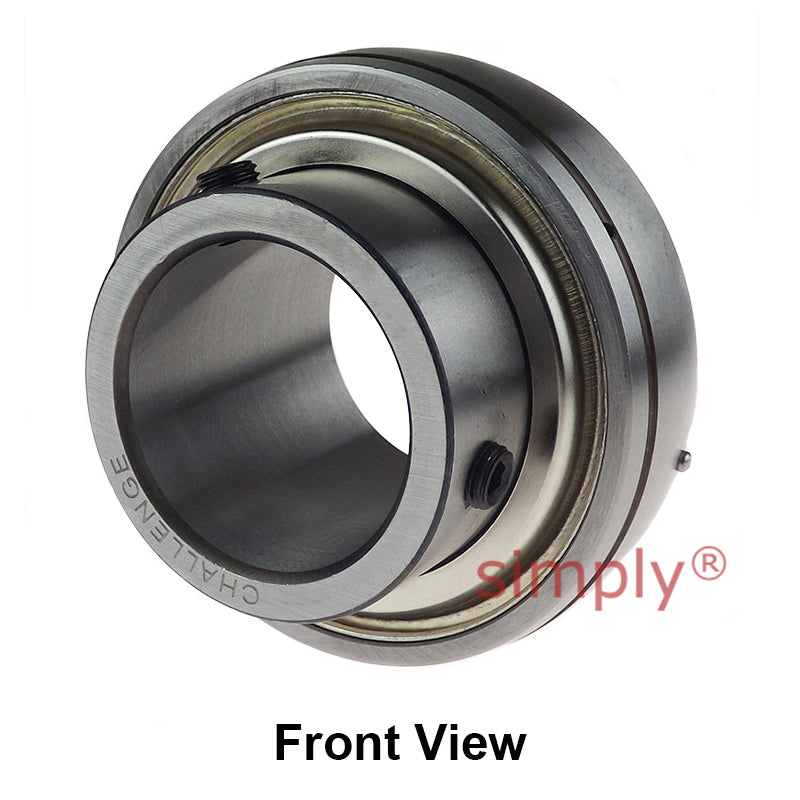

Challenge UC212-36 Imperial Insert with Grub Screws with 2-1/4 inch Bore 110mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UC212-36 Imperial Insert with Grub Screws with 2-1/4 inch Bore 110mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
CHF 92.00
ex VAT
Regular price
Sale price
CHF 92.00
ex VAT
Equivalent to: UC.212-36
In stock
Price Break
3+
CHF 73.15
5+
CHF 69.04
9+
CHF 68.22
19+
CHF 67.39
49+
CHF 66.57
74+
CHF 65.75
99+
CHF 61.64
199+
CHF 60.82
249+
CHF 60.00
499+
CHF 59.18
999+
CHF 57.53
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- UC
Technical
Technical
| Shaft Diameter d | 2-1/4 inch |
|---|---|
| Outside Diameter D | 110mm |
| Overall Width Bi | 65.1mm |
| Inner Race Width Be | 27mm |
| Back of Bearing to Centre Line n | 25.4mm |
| Front of Bearing to Centre Line m | 39.7mm |
| Dimension G | 10mm |
| Grub Screws x 2 | 3/8 - 24UNF inch |
| Load Rating (Dynamic) | 4100kg |
| Load Rating (Static) | 3150kg |
| Max Speed | 1500 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
