SKU: UC.207-20.TS.CHAL

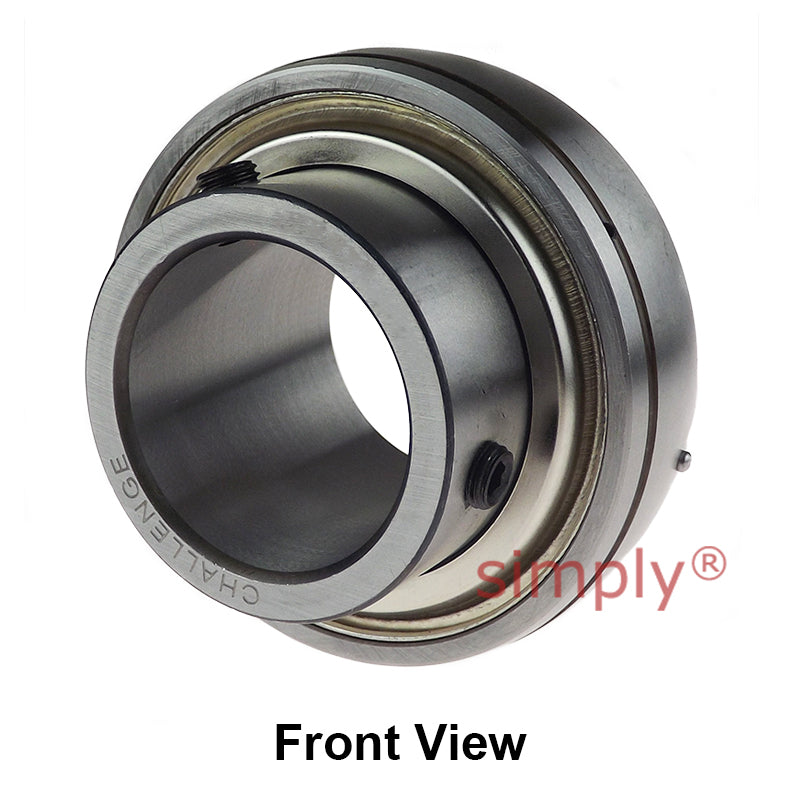

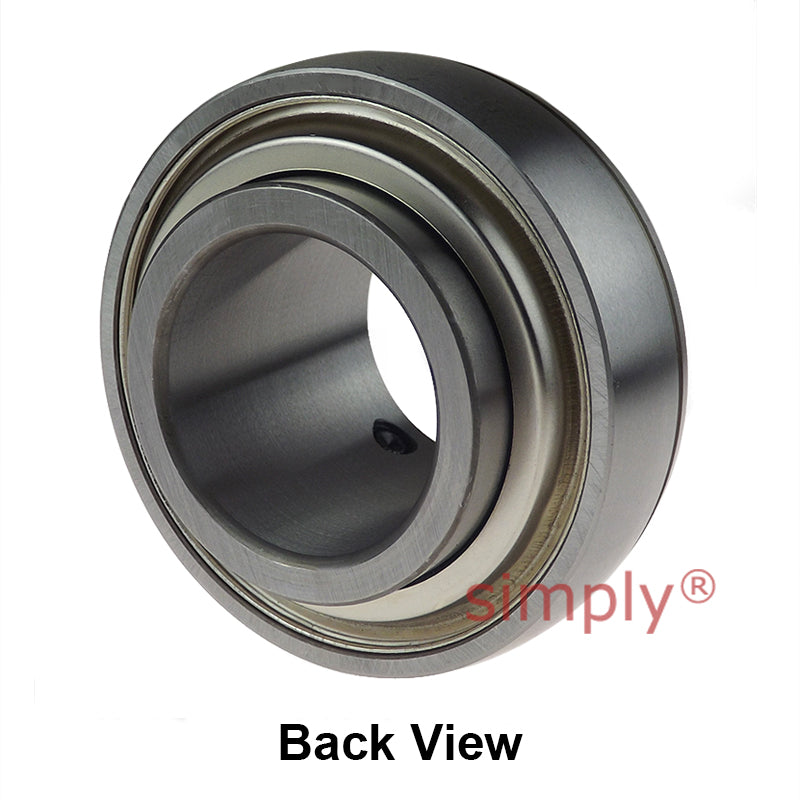

Challenge / FK UC207-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 72mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UC207-20 Imperial Insert with Grub Screws with 1-1/4 inch Bore 72mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
CHF 24.00
ex VAT
Regular price
Sale price
CHF 24.00
ex VAT
Equivalent to: UC.207-20
In stock
Price Break
3+
CHF 18.81
5+
CHF 17.75
9+
CHF 17.54
19+
CHF 17.33
49+
CHF 17.12
74+
CHF 16.90
99+
CHF 15.85
199+
CHF 15.64
249+
CHF 15.43
499+
CHF 15.21
999+
CHF 14.79
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UC Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UC
Technical
Technical
| Shaft Diameter d | 1-1/4 inch |
|---|---|
| Outside Diameter D | 72mm |
| Overall Width Bi | 42.9mm |
| Inner Race Width Be | 20mm |
| Back of Bearing to Centre Line n | 17.5mm |
| Front of Bearing to Centre Line m | 25.4mm |
| Dimension G | 7mm |
| Grub Screws x 2 | 5/16 - 24UNF inch |
| Load Rating (Dynamic) | 2010kg |
| Load Rating (Static) | 1390kg |
| Max Speed | 2400 rev/min |
| Grease Nipple Thread Size | M6 |
| Working Temperature | -30°C to +120°C |
