• SKF TU1-15/16TF Grub Screw Type Take Up Unit 1-15/16 inch Bore
1 1

SKU: TU1.15/16TF-SKF

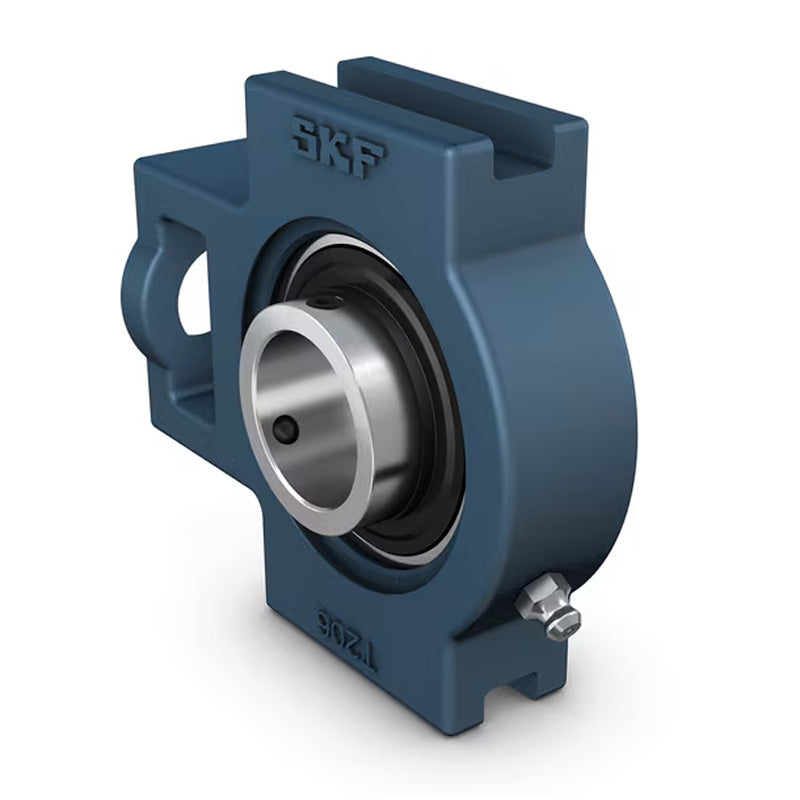

SKF TU1-15/16TF Grub Screw Type Take Up Unit 1-15/16 inch Bore

SKF TU1-15/16TF Grub Screw Type Take Up Unit 1-15/16 inch Bore
CHF 157.00 ex VAT
CHF 157.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 125.15
20+ CHF 118.12
30+ CHF 116.72
40+ CHF 115.31
50+ CHF 113.90
75+ CHF 112.50
100+ CHF 105.47
200+ CHF 104.06
250+ CHF 102.65
500+ CHF 101.25
1000+ CHF 98.43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication.
Benefits: Grease fitting allows re-lubrication
Brand / Quality:
SKF - High Quality
Inside Diameter:
49.21mm = 1.937 (1-15/16) inch
Style:
TU

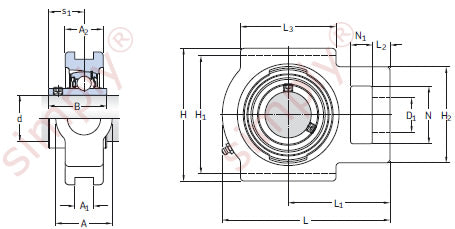

Technical
d 1-15/16 inch
A 49mm
A1 17.5mm
A2 36mm
B 51.6mm
D1 29mm
H 117mm
H1 101mm
H2 83mm
L 149mm
L1 90mm
L2 16mm
L3 86mm
N 49mm
N1 19mm
s1 32.6mm
Static load Cr 23.2 kN
Dynamic load Cor 35.1 kN
Fatigue load limit Pu 0.98 kN
Limiting speed 4000 rpm
Weight 2.4 kg
