SKU: TSHE55-XL-INA
INA TSHE55XL Cast Iron Threaded Base Plummer Block Housing with Eccentric Collar Insert 55mm Bore
INA TSHE55XL Cast Iron Threaded Base Plummer Block Housing with Eccentric Collar Insert 55mm Bore
Regular price
CHF 161.00
ex VAT
Regular price
Sale price
CHF 161.00
ex VAT
In stock
Price Break
4+
CHF 128.10
9+
CHF 120.90
19+
CHF 119.46
29+
CHF 118.02
39+
CHF 116.58
49+
CHF 115.14
59+
CHF 107.95
69+
CHF 106.51
79+
CHF 105.07
89+
CHF 103.63
99+
CHF 100.75
Quantity
Couldn't load pickup availability
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This cast iron housing is a single-piece unit with a high load carrying capacity and features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a short base and is screw mounted to the adjacent construction by blind threaded holes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: High load carrying capacity, re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 55mm
- Style:
- TSHE
- Bolt Hole Centres:
- 118mm

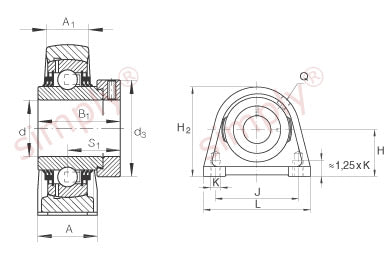

Technical
Technical
| d | 55mm |
|---|---|
| L | 150mm |
| H2 | 125mm |
| A | 60mm |
| A1 | 35mm |
| B1 | 71.4mm |
| d3 max | 76mm |
| H | 64mm |
| J | 118mm |
| K | M16 |
| Q | M6 |
| S1 | 43.6mm |
| Mass | 3.59 kg |
| Basic dynamic load rating Cr | 46000 N |
| Basic static load rating Cor | 29000 N |
| Designation of housing | SHE11 |
| Designation of bearing | GE55-XL-KTT-B |
