SKU: TKRS10-SKF

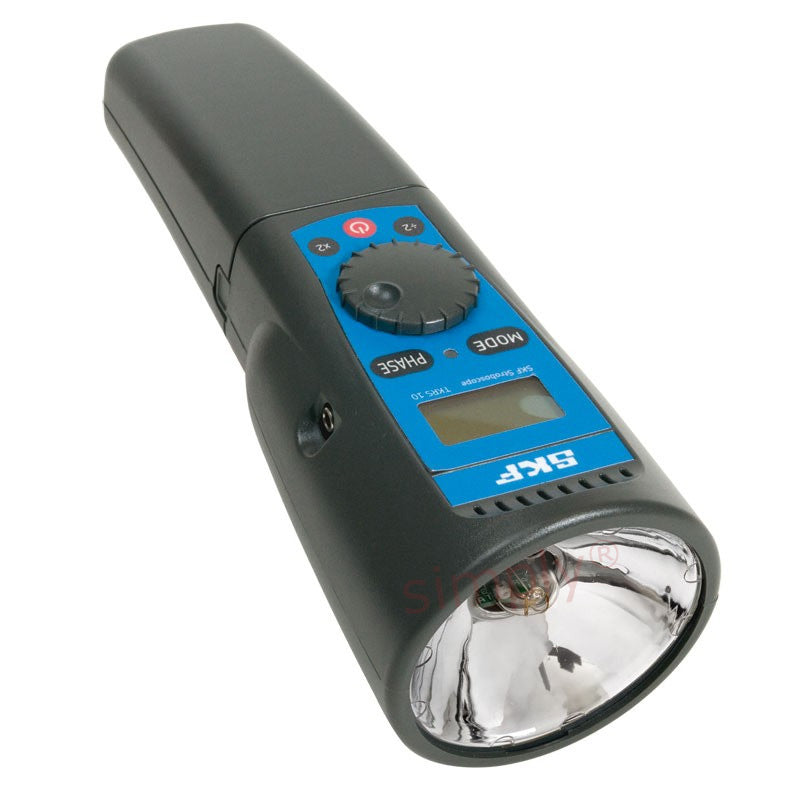

SKF TKRS10 Stroboscope 40-12500 flashes per minute
Out of stock
Share this product
Description
SKF TKRS Series: The SKF Stroboscopes are portable, compact, easy-to-use stroboscopes that enable the motion of rotating or reciprocating machinery to appear frozen. They allow such applications as fan blades, couplings, gear wheels, machine tool spindles and belt drives to be inspected while running. TKRS stroboscopes are useful for ODR programmes and are an essential instrument for maintenance technicians. Phase shift mode enables the viewing of the object of interest to be rotated to the correct position for viewing, especially useful for gear wheels and fan blade inspection. For ease of use for extended periods, they are equipped with a tripod mounting thread.
Note:Ergonomic controls enable the flash rate to be set in a matter of seconds. Supplied in a sturdy carrying case with universal charger
- Brand / Quality:
- SKF - High Quality
Technical
| Flash rate range | 40 to 12 500 flashes per minute (f/min) |
|---|---|
| Flash rate accuracy | +0,5 f/min. or +0,01% of reading, whichever is greater |
| Flash setting and display resolution | 100 to 9 999 f/min; 0,1 f/min, 10 000 to 12 500 f/min; 1 f/min |
| Tachometer range | 40 to 59 000 r/min |
| Tachometer accuracy | +0,5 r/min or +0,01% of reading, whichever is greater |
| Flash source | Xenon tube: 10 W |
| Flash duration | 9-15 ms |
| Light power | 154 mJ per flash |
| Power pack type | NiMH, rechargeable and removable |
| Power pack charge time | 2-4 hours |
| Run time per charge | 2,5 hours at 1 600 f/min, 1,25 hours at 3 200 f/min |
| Battery charger AC input | 100-240 V AC, 50/60 Hz |
| Display | 8 character by 2 line LCD, alphanumeric |
| Display update | continuous |
| Controls | Power, x2, x1/2, phase shift, external trigger |
| External trigger input | 0-5 V TTL type via stereo phono jack |
| EXTL. trigger to flash delay | 5 ms maximum |
| Clock output 0-5 V TTL | Type signal via stereo phono jack |
| Operating temperature | 10 to 40 c (50 to 104 F) |
| Storage temperature | -20 to +45 c (-4 to +113 F) |
