SKU: THAP030E/SET-SKF

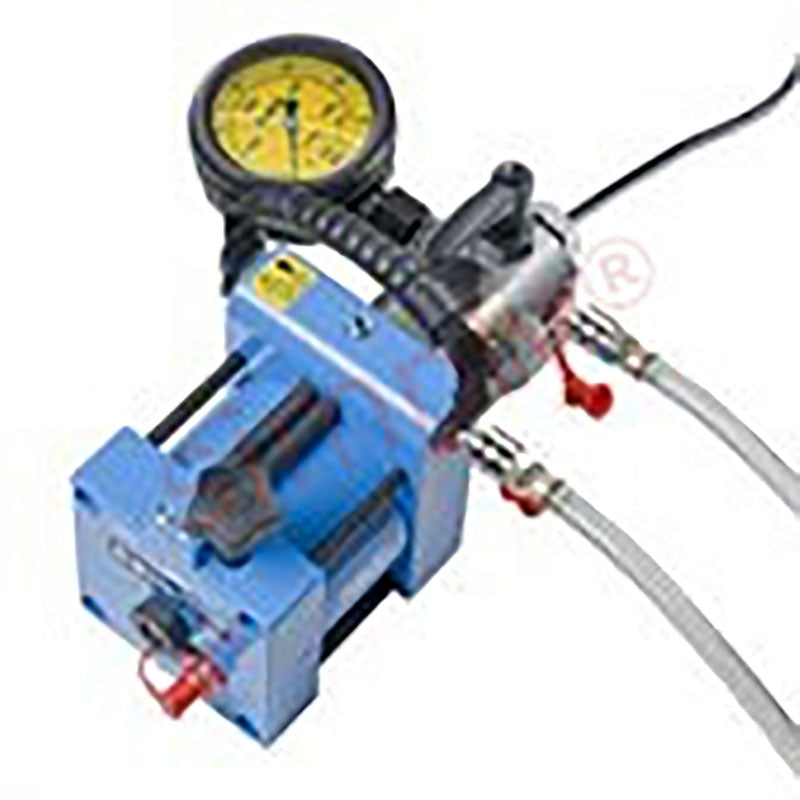

SKF THAP30 Air-driven Hydraulic Pump and Oil Injector Set 30Mpa (4350 psi)
SKF THAP30 Air-driven Hydraulic Pump and Oil Injector Set 30Mpa (4350 psi)
Out of stock
Share this product
Description
Description
|
SKF Air-driven Pump and Oil Injector THAP Series: Air-driven pumps and oil injectors are used for mounting and dismounting OK couplings, for dismounting large pressure joints such as bearings, flywheels, couplings, railway wheels and in many similar applications. The pumps consist of a high pressure hydraulic pump, driven by an air piston. The units are supplied in a sturdy case including oil suction and return hoses with quick connect couplings. The air driven pumps can also be supplied in complete sets which consists of pump, pressure gauge, high pressure pipe and connection nipples. Benefits: Time savings compared to hand operated pumps. Continuous supply of oil Note: Portable |
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| Nominal Hydraulic Pressure | 30 Mpa (4350 psi) |
|---|---|
| Maximum Air Pressure | 0.7 Mpa (101.5 psi) |
| Volume/Stroke | 6.63cm3 |
| Oil Outlet | G 3/4 |
| Length | 380mm (15 in.) |
| Height | 190mm (7.5 in) |
| Width | 120mm (4.7 in.) |
