SKU: SYM2.11/16TF-SKF
SKF SYM2-11/16TF Cast Iron Plummer Block with Grub Screw Insert 2-11/16 inch Bore
SKF SYM2-11/16TF Cast Iron Plummer Block with Grub Screw Insert 2-11/16 inch Bore
Regular price
CHF 271.00
ex VAT
Regular price
Sale price
CHF 271.00
ex VAT
In stock
Price Break
10+
CHF 216.60
20+
CHF 204.43
30+
CHF 202.00
40+
CHF 199.56
50+
CHF 197.13
75+
CHF 194.69
100+
CHF 182.53
200+
CHF 180.09
250+
CHF 177.66
500+
CHF 175.23
1000+
CHF 170.36
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Y-bearing Plummer Block Units with a Cast Housing: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has two oblong holes for the attachment bolts in the base of the housing. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 68.26mm = 2.687 (2-11/16) inch
- Style:
- SYM
- Bolt Hole Centres:
- 228.6mm

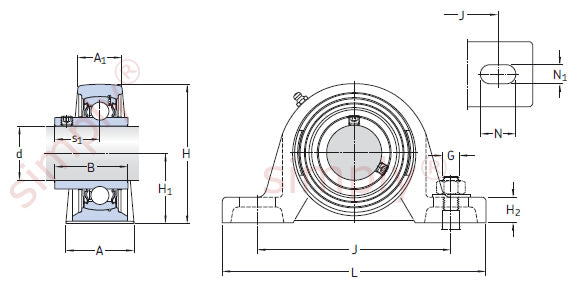

Technical
Technical
| d | 2-11/16 inch |
|---|---|
| A | 76.2mm |
| A1 | 48mm |
| B | 73.2mm |
| H | 177mm |
| H1 | 88.9mm |
| H2 | 47.2mm |
| J | 228.6mm |
| L | 305mm |
| N | 35mm |
| N1 | 22.2mm |
| G | 20mm |
| s1 | 46.2mm |
| Static load Cr | 49 kN |
| Dynamic load Cor | 66.3 kN |
| Fatigue load limit Pu | 2.04 kN |
| Limiting speed | 2600 rpm |
| Weight | 10.8 kg |
