SKU: SYFL1.1/4TH-SKF
SKF SYFL1-1/4TH Composite Plummer Block with Food Grease Grub Screw Insert 1-1/4 inch
SKF SYFL1-1/4TH Composite Plummer Block with Food Grease Grub Screw Insert 1-1/4 inch
Out of stock
Description
Description
|
SKF Y-bearing Short Base Plummer Block Units for the Food Industry: Developed specifically for food and beverage applications. The housing of this unit is made of a chemical and corrosion resistant composite material which is designed to withstand frequent washdowns. The non-porous surface resists the accumulation of bacteria-forming food particles and the light-grey colour makes visual inspection easy. These units are lubricated with food-grade grease. Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- SYFL
- Bolt Hole Centres:
- 82.55mm

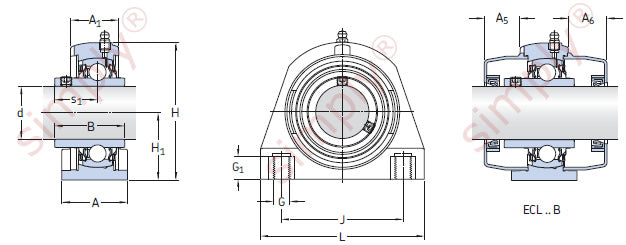

Technical
Technical
| d | 1-1/4 inch |
|---|---|
| A | 47.5mm |
| A1 | 32.5mm |
| B | 42.9mm |
| H | 95mm |
| H1 | 47.6mm |
| J | 82.55mm |
| L | 110mm |
| G | M10 |
| G1 | 15.5mm |
| s1 | 25.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 21.6 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 3200 rpm |
| A5 | 29mm |
| A6 | 29mm |
| Weight | 0.73 kg |
| Housing | SYFL507 |
| Insert | YAR207-104-2RF/HV |
| Compatible end cover closed | ECL207 |
| Compatible end cover open | ECL207-104B |
