SKU: SY45PF-SKF

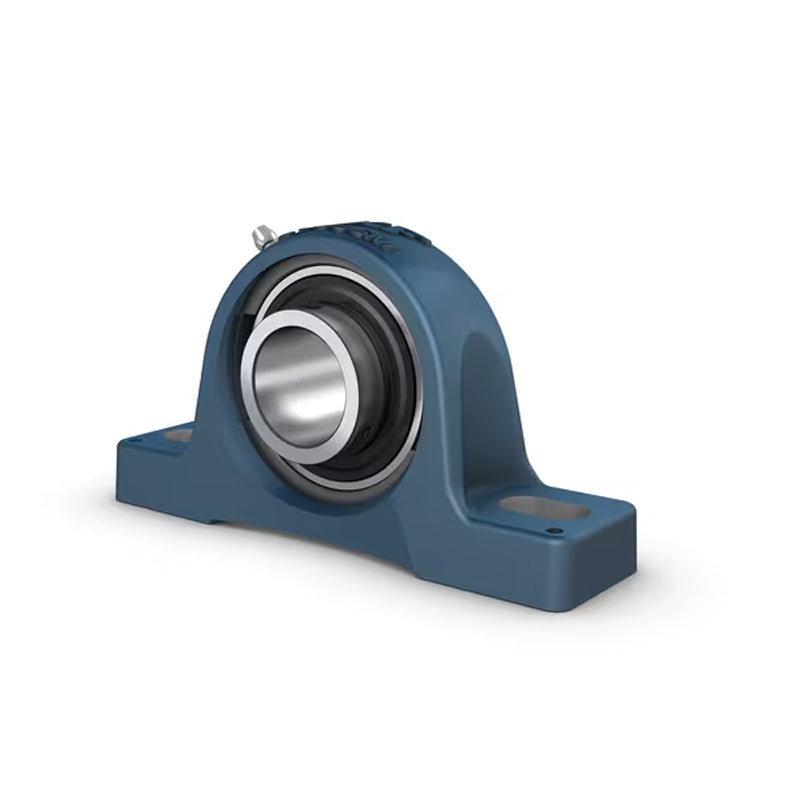

SKF SY45PF ConCentra Plummer / Pillow Block Housing with 45mm Insert
SKF SY45PF ConCentra Plummer / Pillow Block Housing with 45mm Insert
Out of stock
Description
Description
|
SKF ConCentra Ball Bearing Units: This bearing unit consists of a deep groove ball bearing with the inner ring extended on both sides, an SKF ConCentra stepped sleeve and an SY 500 M series plummer block housing for metric shafts, or an SY 500 U/AH series pillow block housing for inch shafts. Filled with a high-quality, long-lasting grease, maintenance-free operation is provided in most cases. The unit can accommodate up to 2 degrees of initial misalignment if they are relubricated during operation otherwise misalignment of up to 5 degrees can be tolerated. The SKF ConCentra ball bearing units have a unique 360 degree locking mechanism. The near perfect 360 degree grip on the shaft virtually eliminates shaft damage and the possibility of fretting corrosion. Benefits: Tolerates misalignment, filled with high-quality grease |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Style:
- SY
- Bolt Hole Centres:
- 143.5mm
Technical
Technical

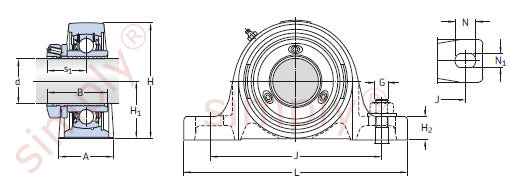

| d | 45mm |
|---|---|
| A | 48mm |
| B | 52mm |
| H | 107mm |
| H1 | 54mm |
| H2 | 21mm |
| J | 143.5mm |
| L | 187mm |
| N | 22.5mm |
| N1 | 14mm |
| G | 12mm |
| s1 | 35mm |
| Static load Cr | 21.6 kN |
| Dynamic Load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 2.25 kg |
