SKU: SW200-M2400

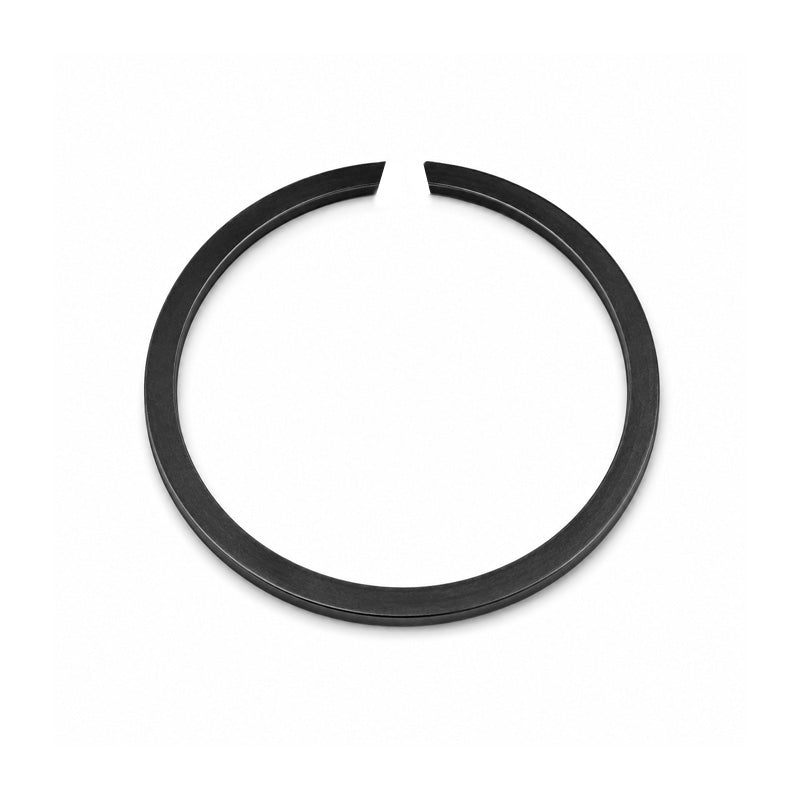

SW200 Snap Ring to Suit 200mm Shaft
SW200 Snap Ring to Suit 200mm Shaft
Equivalent to: DIN5417 DIN 5417 CFS200 CFS-200 2400-200 SW200 SW-200 M2400-200
Out of stock
Description
Description
|
Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 196mm
- Shaft Size:
- 200mm
Technical
Technical
| d1 | 200mm |
|---|---|
| s | 3mm (Tolerance -0.1) |
| b | 5mm (Tolerance -0.1) |
| d3 max. | 196mm |
| d2 | 197mm (Tolerance - 0.29) |
| m min. | 3.2mm |
| FN | 156 kN |
| FR | 61.4 kN |
| n det x1000 | 0.5 rpm |
