SKU: SUCFL.PL.217

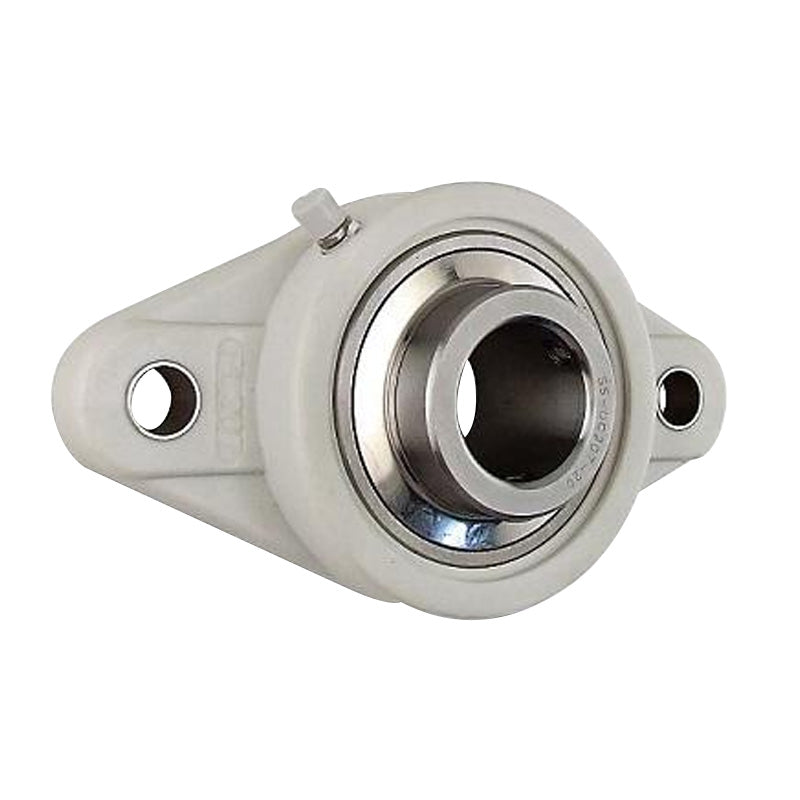

SUCFLPL217 Metric Two Bolt Oval Thermo Plastic Flange Housing with 85mm Bore Stainless Insert
SUCFLPL217 Metric Two Bolt Oval Thermo Plastic Flange Housing with 85mm Bore Stainless Insert
Out of stock
Description
Description
|
SUCFLP or SFT Series 2 Bolt Oval Thermo-Plastic Housings: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. This housing unit may be supplied in either green or white. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 85mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCFL
- Bolt Hole Centres:
- 248mm
Technical
Technical
| d | 85mm |
|---|---|
| a | 305mm |
| e | 248mm |
| i | 36mm |
| g | 22mm |
| L | 63mm |
| S | 25mm |
| b | 190mm |
| Z | 87.6mm |
| Bi | 85.7mm |
| n | 34.1mm |
| Bolt | 22mm |
| Weight | 9.6 kg |
| Dynamic load | 6600 kgf |
| Static load | 5320 kgf |
| Temperature Range | -35 to 102 deg C |
