SKU: ST25A-RHP

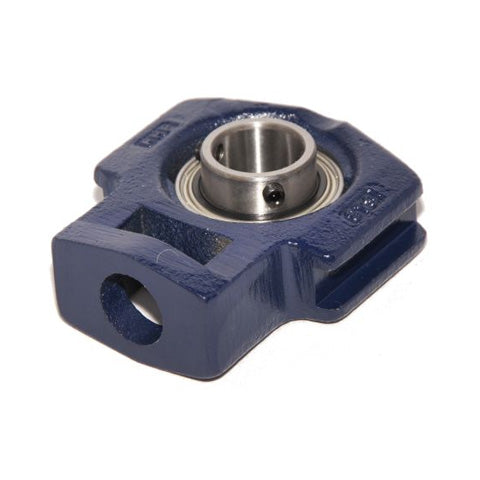

RHP ST25A Cast Iron Take Up Unit and 25mm Bore Insert
RHP ST25A Cast Iron Take Up Unit and 25mm Bore Insert
Regular price
CHF 51.00
ex VAT
Regular price
Sale price
CHF 51.00
ex VAT
In stock
Price Break
10+
CHF 40.16
20+
CHF 37.90
30+
CHF 37.45
40+
CHF 37.00
50+
CHF 36.55
75+
CHF 36.09
100+
CHF 33.84
200+
CHF 33.39
250+
CHF 32.94
500+
CHF 32.49
1000+
CHF 31.58
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|

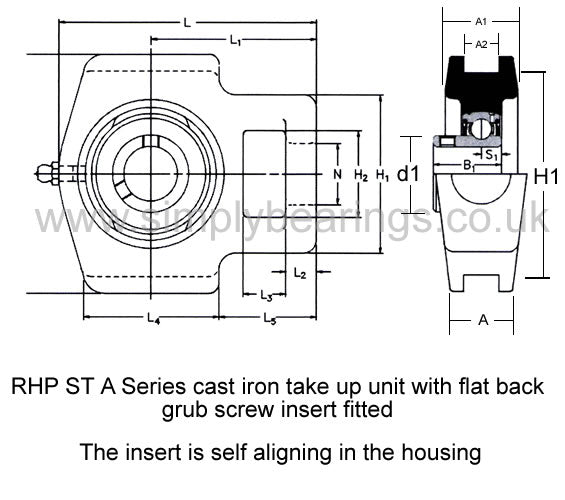

RHP ST A Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- ST
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 98mm |
| L1 | 62mm |
| L2 | 11.5mm |
| L3 | 16mm |
| L4 | 50.5mm |
| L5 | 36.5mm |
| H | 88.5mm |
| H1 | 58.5mm |
| H2 | 32mm |
| H3 | 76mm |
| N | 22.5mm |
| A | 36mm |
| A1 | 27.5mm |
| A2 | 13.5mm |
| B1 | 27.35mm |
| s1 | 7.56mm |
| d1 | 34.01mm |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-25G+insonly">1225-25G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
