SKU: ST1.7/16EC-RHP
RHP ST1-7/16EC Cast Iron Take Up Unit and 1-7/16 inch Bore Insert
RHP ST1-7/16EC Cast Iron Take Up Unit and 1-7/16 inch Bore Insert
Regular price
CHF 76.00
ex VAT
Regular price
Sale price
CHF 76.00
ex VAT
In stock
Price Break
10+
CHF 60.64
20+
CHF 57.23
30+
CHF 56.55
40+
CHF 55.87
50+
CHF 55.19
75+
CHF 54.51
100+
CHF 51.10
200+
CHF 50.42
250+
CHF 49.74
500+
CHF 49.06
1000+
CHF 47.69
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP ST EC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- ST

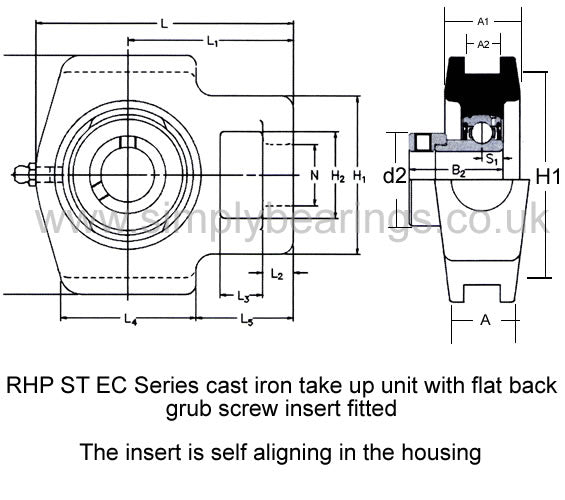

Technical
Technical
| Bore | 1-7/16 inch |
|---|---|
| L | 4.882 inch |
| L1 | 2.972 inch |
| L2 | 0.492 inch |
| L3 | 0.65 inch |
| L4 | 2.539 inch |
| L5 | 1.693 inch |
| H | 3.996 inch |
| H1 | 2.539 inch |
| H2 | 1.476 inch |
| H3 | 3.504 inch |
| N | 0.886 inch |
| A | 1.437 inch |
| A1 | 1.181 inch |
| A2 | 0.531 inch |
| B2 | 1.531 inch |
| s1 | 0.376 inch |
| d2 | 2.188 inch |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1235-1-7/16ECG+insonly">1235-1-7/16ECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
