SKU: SSUCT.216

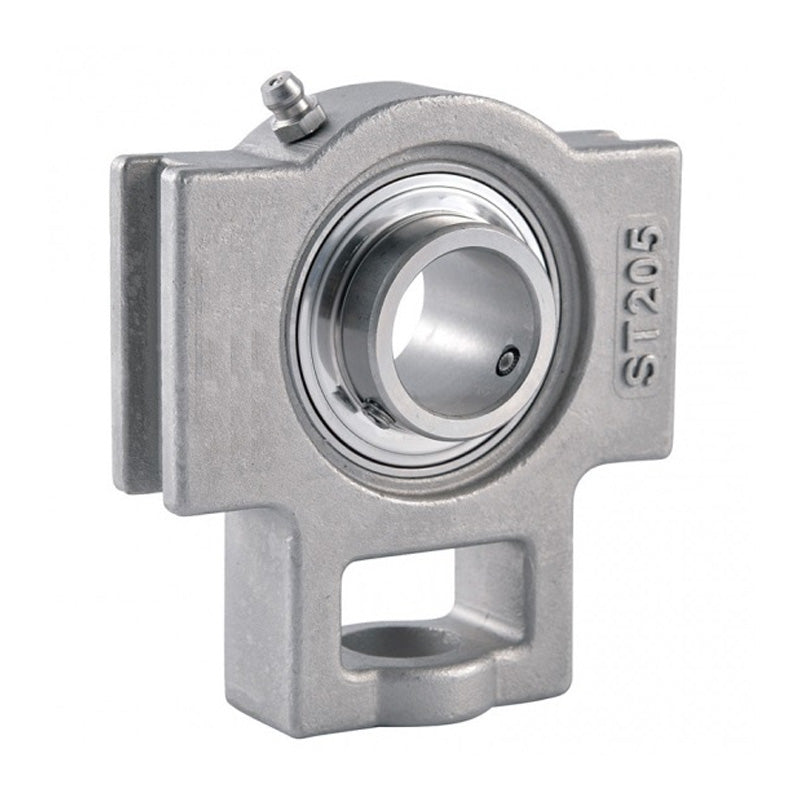

SSUCT216 Metric Stainless Steel Take Up Unit Housing with 80mm Bore Stainless Insert
SSUCT216 Metric Stainless Steel Take Up Unit Housing with 80mm Bore Stainless Insert
Out of stock
Description
Description
|
SSUCT or ST Series Stainless Steel Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Style:
- SSUCT
Technical
Technical
| d | 80mm |
|---|---|
| o | 32mm |
| g | 21mm |
| p | 111mm |
| q | 70mm |
| s | 41mm |
| b | 121mm |
| K | 26mm |
| e | 165mm |
| a | 184mm |
| w | 235mm |
| j | 70mm |
| l | 51mm |
| h | 140mm |
| Bi | 82.6mm |
| n | 33.3mm |
| Weight | 8.3 kg |
| Dynamic load | 5700 kgf |
| Static load | 4550 kgf |
