SKU: SSUCFL.208-25

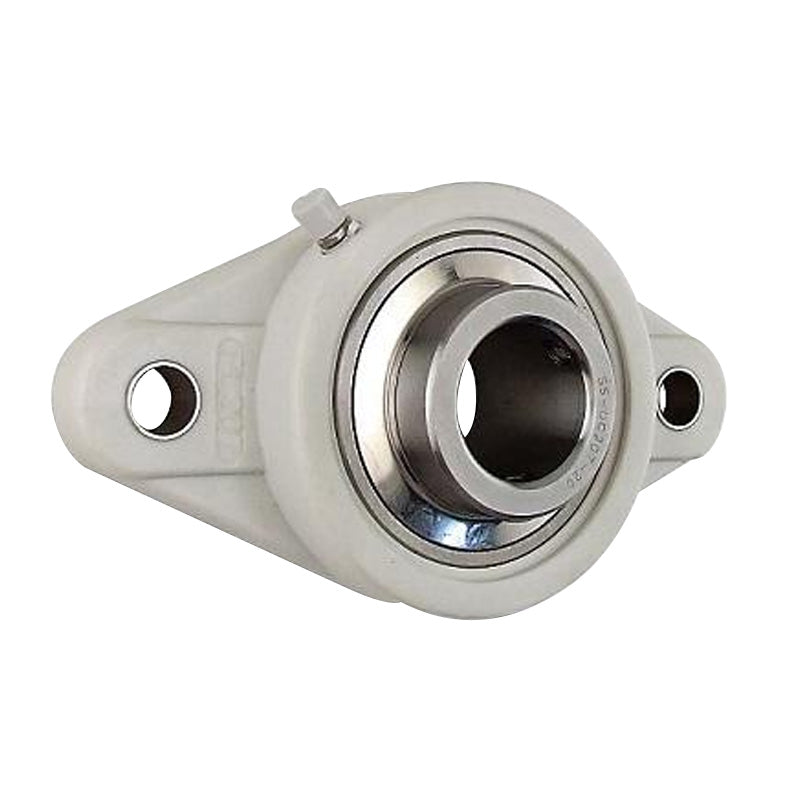

SSUCFL208-25 Imperial Two Bolt Oval Stainless Steel Flange Housing with 1-9/16 inch Bore Stainless Insert
SSUCFL208-25 Imperial Two Bolt Oval Stainless Steel Flange Housing with 1-9/16 inch Bore Stainless Insert
Out of stock
Description
Description
|
SSUCFL or SFT Series 2 Bolt Oval Stainless Steel Housings: Bearing unit supplied with a fully sealed stainless steel bearing insert fitted in the oval stainless housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 39.69mm = 1.563 (1-9/16) inch
- Style:
- SSUCFL
- Bolt Hole Centres:
- 144mm
Technical
Technical
| d | 1-9/16 inch |
|---|---|
| a | 175mm |
| e | 144mm |
| i | 21mm |
| g | 14mm |
| L | 36mm |
| S | 16mm |
| b | 100mm |
| Z | 51.2mm |
| Bi | 49.2mm |
| n | 19.0mm |
| Bolt | 16mm |
| Weight | 1.6 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
