SKU: SSM0220_160MM

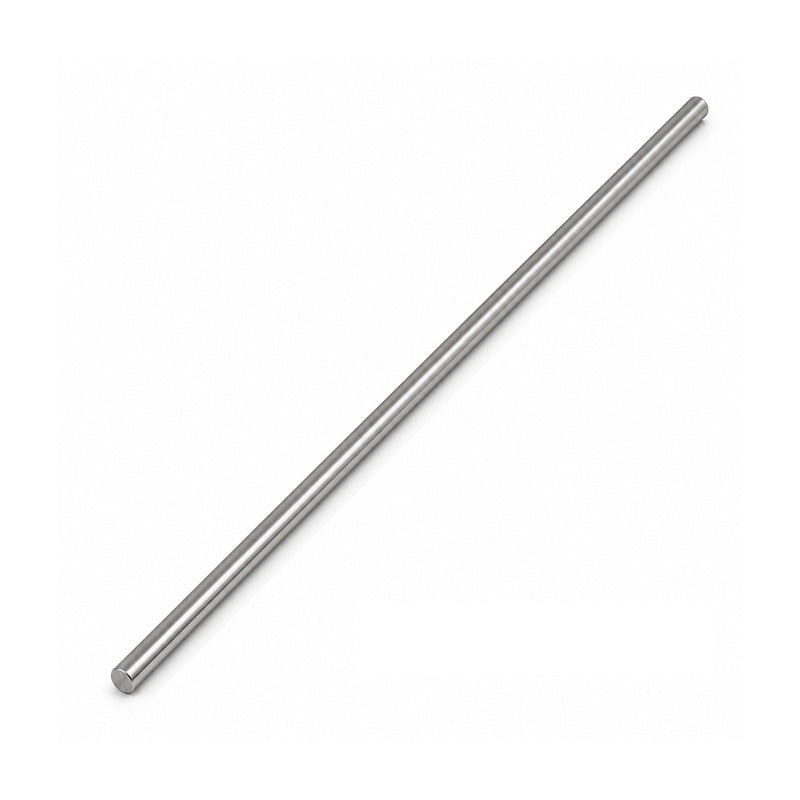

22mm Diameter Silver Steel Round Bar - 160mm
22mm Diameter Silver Steel Round Bar - 160mm
Regular price
CHF 17.00
ex VAT
Regular price
Sale price
CHF 17.00
ex VAT
In stock
Price Break
2+
CHF 13.47
10+
CHF 12.72
20+
CHF 12.57
30+
CHF 12.41
40+
CHF 12.26
50+
CHF 12.11
60+
CHF 11.36
70+
CHF 11.20
80+
CHF 11.05
90+
CHF 10.90
100+
CHF 10.60
Quantity
Couldn't load pickup availability
Description
Description
Silver Steel: Silver steel is precision round bar stock conforming to BS1407. It is manufactured in a centreless grinding process and can be machined, reworked and hardened as required. Each length is supplied with protective coating solution applied to it to ensure its finish is maintained.
Benefits: Silver Steel can be machined, softened, re-hardened and tempered by heat treatment processes.
Tolerance guide: Bars of less than 25mm diameter or 1 inch: Tolerances are stated as maximum +/- 0.015mm on diameter.
Bars between 25mm to 50mm or 1 inch to 2 inch: Tolerances are stated as maximum +/- 0.025mm on diameter.
- Brand / Quality:
- Simply Silver Steel - High Quality
- Outside Diameter:
- 22mm
- Length:
- 160mm
Technical
Technical
| Diameter d | 22mm |
|---|---|
| Length Approx h | 325mm |
| Analysis Range (%) | Typical Analysis (%) |
| C. 95 / 1.25 | 1.13% |
| Si 0.40 max | 0.22% |
| Mn 0.25 / 0.45 | 0.37% |
| P 0.045 max | 0.014% |
| S 0.045 max | 0.018% |
| Cr 0.35 / 0.45 | 0.43% |
